Broadband RF Monitor Probe

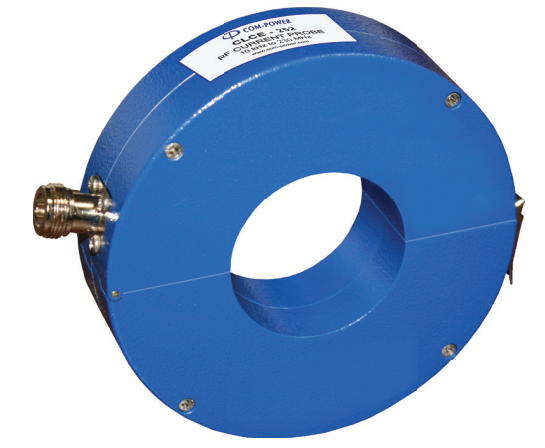

- ▸ CLCE-252 RF current monitoring probe, 9 kHz to 230 MHz — a wideband split-core current probe for conducted emissions measurement and RF current monitoring across commercial, automotive, military, and aerospace EMC testing.
- ▸ Standards-compliant current probe for CISPR, MIL-STD-461, and RTCA DO-160 — meets CISPR 16-1-2 requirements for current monitoring probes and supports conducted emissions and immunity testing per CISPR 22/32, MIL-STD-461, and DO-160.
- ▸ Large 52 mm (2") aperture for thick cable bundles and harnesses — the generous window measures multi-conductor power harnesses and shielded cable assemblies where splitting the bundle is not practical.
- ▸ Nominal 0.25 Ω (−12 dBΩ) transfer impedance for reliable signal data — delivers accurate current-to-voltage conversion for compliance-grade conducted emissions measurements.
- ▸ High current handling for heavy-duty testing — rated for 150 A DC, 90 A AC at 50/60 Hz, 72 A AC at 400 Hz, 3 A RF, and 3500 A pulse (8/20 µs), supporting demanding industrial and military setups.
- ▸ Hinged split-core design for fast, non-intrusive clamp-on measurement — opens to clamp over installed cables and harnesses without disconnecting connectors, then functions as a toroidal transformer for safe, contactless RF current sensing.
- ▸ Ideal for Bulk Current Injection (BCI) immunity current monitoring — precisely monitors applied RF current during BCI conducted susceptibility testing (such as MIL-STD-461 CS114), validating that injected levels meet test requirements.
- ▸ NIST-traceable individual calibration for accurate, repeatable results — each probe ships with NIST-traceable transfer impedance calibration data; ISO/IEC 17025 accredited calibration available on request, with a three-year warranty.
- ▸ Optimized for use with Com-Power accessories — pairs with the FCLCE-452 Calibration Fixture and the SPA-932TG Spectrum Analyzer for full system compatibility and a complete, standards-compliant RF current measurement setup.
CLCE-252 Features
- ▸ RF current monitoring / sensing probe — for conducted emissions and immunity testing
- ▸ Frequency range 9 kHz to 230 MHz
- ▸ Meets CISPR 16-1-2 requirements for current monitoring probes
- ▸ Suitable for CISPR 22/32, MIL-STD-461, and RTCA DO-160 EMC testing
- ▸ 52 mm (2.00") aperture — fits the target cable and bundle range
- ▸ Hinged split-core design — clamps over installed cables without interrupting the setup
- ▸ Inductive toroidal-transformer measurement — safe, non-contact RF current sensing
- ▸ Type-N (female) connector — consistent, high-quality RF interfacing
- ▸ Ideal for Bulk Current Injection (BCI) immunity current monitoring
- ▸ NIST-traceable individual calibration — ISO/IEC 17025 accredited calibration available on request
- ▸ Three-year warranty
CLCE-252 Specifications
| Parameter | Specification |
|---|---|
| Model | CLCE-252 |
| Type | RF current monitoring / sensing probe (high-current, large aperture) |
| Applicable Standards | CISPR 16-1-2; CISPR 15/25/32, IEC 61000-4-6, MIL-STD-461, RTCA DO-160 |
| Frequency Range | 9 kHz to 230 MHz |
| Window (Aperture) Inside Diameter | 2.00" (52 mm) |
| Outside Diameter | 4.90" (125 mm) |
| Height | 1.40" (36 mm) |
| Width | 5.90" (150 mm) |
| Weight | 1.5 lbs (0.68 kg) |
| Connector | Type-N (female) |
| Core Design | Hinged split-core (clamp-on) |
| Transfer Impedance (Zt) | 0.25 Ω (typical) |
| Transfer Impedance (dBΩ) | −12 dBΩ (typical) |
| Insertion Loss | 46 dB (nominal) |
| Insertion Impedance | < 1 Ω |
| Max Primary Current (DC) | 150 A |
| Max Primary Current (AC 50/60 Hz) | 90 A |
| Max Primary Current (AC 400 Hz) | 72 A |
| Max Primary Current (RF) | 3 A |
| Pulse Current (8/20 µs) | 3500 A |
| Calibration | NIST-traceable individual calibration; ISO/IEC 17025 accredited optional |
| Warranty | 3 years |
Measurement system: For a complete RF current measurement and monitoring setup, pair the probe with the SPA-932TG Spectrum Analyzer. The probe is also ideal for monitoring applied current during Bulk Current Injection (BCI) conducted immunity testing.
| Title | Link |
|---|---|
| CLCE-252 Datasheet | View PDF |
