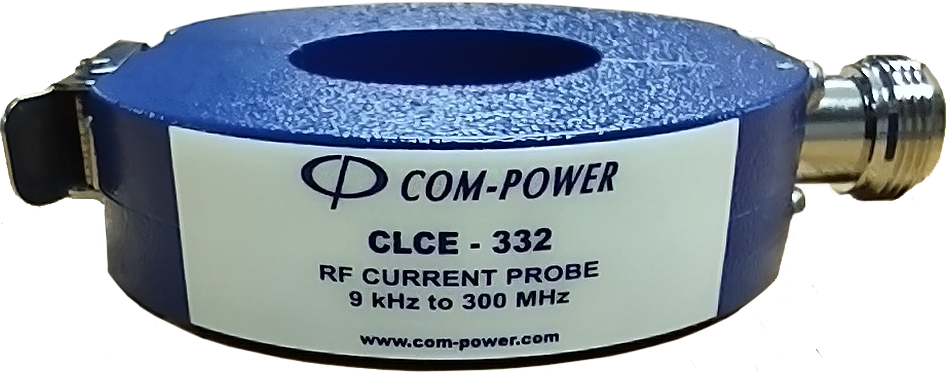

CLCE-332

9 kHz to 300 MHz

Current Monitoring Probe

  • The CLCE-332 RF Current Probe is part of Com-Power's extensive line of radio frequency conducted emission/ immunity test equipment and calibration accessories.
  • The CLCE-332 is suitable for compliance measurements required by CISPR 22, CISPR 32, DO-160, Mil Std 461 etc, as well as for applied current monitoring during conducted immunity tests.
  • Its design incorporates a split-core ferrite in a rugged, circular hinged enclosure; thereby allowing the probe to be opened on one side in order to easily place the wire, cable(s) or cable bundle(s) to be tested into the probe window, making the CLCE-332 much more convenient to use than other non-split core probes.
  • The CLCE-332 is designed to be used in conjunction with a spectrum analyzer or EMI receiver or any 50Ω impedance measurement equipment, which measure magnitude quantities in terms of true rms voltage.
Frequently bought together
  • Frequency Range: 9 kHz to 300 MHz
  • Suitable for CISPR, Mil-Std 461 & DO-160
  • Individual calibration
  • Three-year warranty
  • Frequency Range: 9 kHz to 300 MHz
  • Window (Aperture) Inside Diameter: 1.26" (32 mm)
  • Outside Diameter: 2.83" (72 mm)
  • Height: 0.76" (19.3 mm)
  • Weight: 0.275 lbs. (0.125 kg)
  • Connector: Type-N (Female)
  • Transfer impedance (ZtΩ): 5Ω
  • Transfer impedance (dBΩ): -40 to 15 dBΩ (typical)*
  • Max Primary Current (DC-60 Hz): 56 Amps
  • Max Primary Current (400 Hz): 42 Amps
  • Max Primary Current (RF): 3 Amps
  • Max. Core Temperature: 248℃F (120°C)
  • Pulse (8/20 µs):  1300 Amps
  • Related Accessories Available from Com-Power:
    • FCLCE-1000 Calibration Fixture
    • SPA-932TGE Spectrum Analyzer
