Broadband Power Amplifier: For Conducted Susceptibilty

ACS-230-25W

150 kHz to 230 MHz

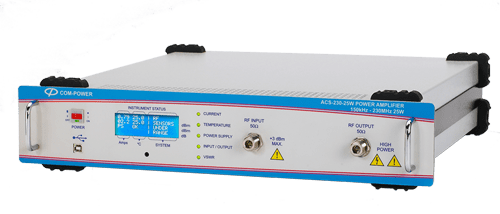

Com-Power ACS-230-25W RF amplifier with 25W output, LCD display, Type N connectors, rackmount design

Broadband Power Amplifier: For Conducted Susceptibilty

  • RF Power Amplifier for EMC Testing:
    Specifically designed for IEC 61000-4-6 conducted immunity testing in compliance and pre-compliance labs.

  • Frequency Range from 150 kHz to 230 MHz:
    Broad spectrum coverage ideal for various conducted RF test applications and setups.

  • 25 Watts Output into 2:1 VSWR Load:
    Delivers required power levels for standard EMC test levels using compatible CDNs and accessories.

  • High Gain Performance (43 dB ±2):
    Requires only 0 dBm input for full-rated output; ensures efficient RF signal amplification.

  • Automatic Safety Shutoff Protection:
    Built-in shutoff activates at 30W or under mismatch conditions; protects amplifier and test systems.

  • Low Harmonic Distortion (–20 dBc at 25W):
    Produces clean RF signals; ensures reliable and accurate EMC test measurements.

  • LCD Front Panel Display:
    Displays real-time current, temperature, input/output power, VSWR, and gain for easy monitoring.

  • USB Interface for Automation:
    Supports software integration to automate IEC 61000-4-6 testing workflows and data collection.

  • Compact 2U Rack-Mount Design:
    Fits 19-inch racks with integrated forced-air cooling; ideal for space-efficient lab environments.

  • Three-Year Manufacturer Warranty:
    Each unit is individually tested and backed by Com-Power’s trusted 3-year product warranty

  • Broad Frequency Coverage (150 kHz–230 MHz): Ideal for IEC 61000-4-6 testing; supports a wide range of EMC applications.

  • 25 Watts Rated Output Power into 2:1 VSWR: Delivers strong output; meets standard test levels with ease.

  • High Amplifier Gain (43 dB ±2): Efficient signal amplification; needs only 0 dBm input.

  • Automatic Safety Shutoff at 30 Watts: Protects the amplifier; shuts off during overload or mismatch.

  • Designed for IEC 61000-4-6 Compliance: Fully meets test standards; ideal for compliance and pre-compliance setups.

  • Low Harmonic Distortion (–20 dBc at 25 Watts): Produces clean signals; ensures accurate test results.

  • Front Panel LCD Display: Shows current, temperature, and RF power; easy to monitor during testing.

  • USB Interface for Automation: Supports test software; enables automated immunity testing.

  • Compact 2U Rack-Mount Size: Fits standard racks; includes internal fan for cooling.

  • Three-Year Manufacturer Warranty: Provides long-term reliability; each unit is fully tested before shipping.

Frequency Range: 150 kHz to 230 MHz

  • Rated Power Output: 25 watts into 2:1 VSWR
  • Gain : 43 dB ±2 dB
  • Input for rated output : 0 dBm (typical)
  • Automatic Safety Shut-off: 30 watts ± 2
  • Power Output @ 1 dB Compression Point: N/A

Input:

  • Impedance : 50 ohms (nominal)
  • VSWR : 1.7 (maximum)
  • Input Signal Modulation Compatibility:: AM, FM, or Pulse modulation
  • Connector: Type N on Front Panel

Output:

  • Impedance    : 50 ohms (nominal)
  • VSWR  : 1.7 (maximum)
  • Harmonic distortion : -20 dBc at 25 watts
  • Mismatch Tolerance: Automatic Safety Shut-off @ VSWR >7
  • Connector   : Type N on Front Panel

Power:

  • AC, Single Phase: 100-240 VAC 50/60 Hz

Display and Interfaces:

  • Front Panel Display (Column 1): Amplifier Current measurement Data
  • Front Panel Display (Column 2): Amplifier Temperature measurement data
  • Front Panel Display (Column 3): Load VSWR, RF Power Input/Output, Gain
  • Remote Interlock (optional) : 2-pin DIN

Mechanical:

  • Cooling : Forced air (self-contained fans)
  • Size: 19” Rack 2U
  • Weight : 25 lbs (11.3 kg)
  • Operating Temperature Range: 0° C to +40° C
