Power Frequency Magnetic Field Generator
- ▸ Power frequency magnetic field generator, 50/60 Hz — generates continuous power-frequency magnetic fields for immunity testing per IEC/EN 61000-4-8 and all derived product standards.
- ▸ Magnetic field strength up to 100 A/m — covers the continuous field test levels defined in IEC 61000-4-8 when used with a matched inductive loop antenna.
- ▸ User-selectable 50 Hz or 60 Hz operation — matches the mains frequency of the EUT’s intended market.

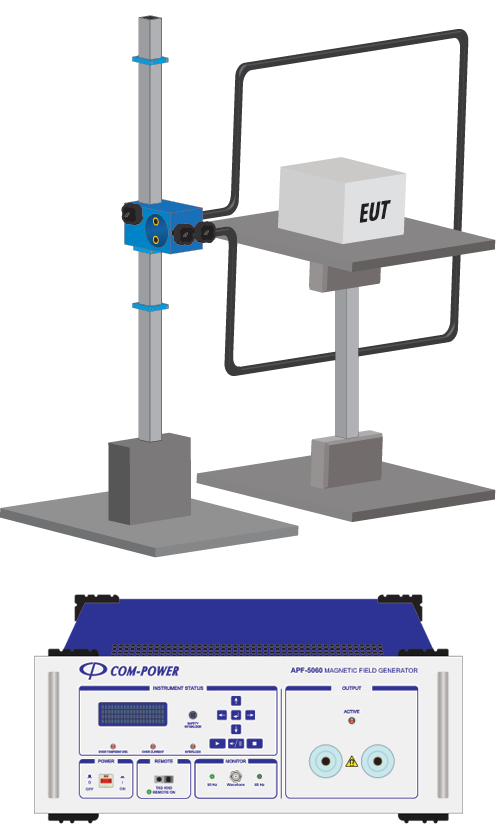

- ▸ Standalone turnkey solution with Com-Power loop antennas — with the APF-5060-11 inductive coil, antenna positioner, and EUT stand it forms a complete IEC 61000-4-8 test system.

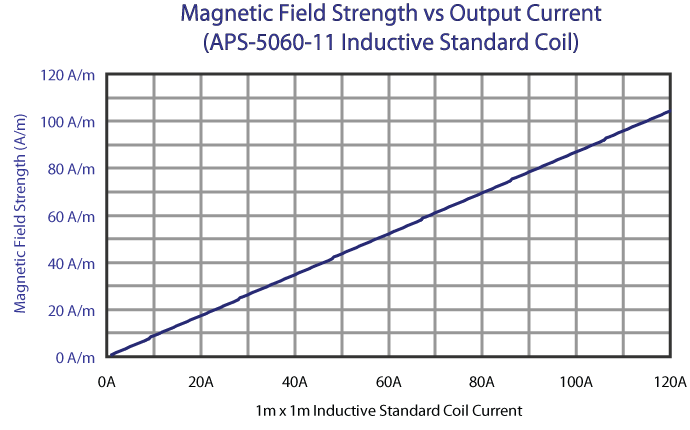

- ▸ Current-controlled field generation based on coil factor — the generator sets output current from the coil factor of the connected loop to produce the required field strength.
- ▸ Two shrouded banana sockets for the loop antenna — convenient and finger-proof connection of the inductive coil.
- ▸ Full front-panel control plus PC remote operation — fiber-optic interface allows remote control by PC software, with pre-defined coil factors for all Com-Power loops and a user-defined coil factor option for any loop with a known factor.
- ▸ Suited to household appliances, IT, industrial, and medical equipment — products evaluated for susceptibility to power-frequency magnetic fields from transformers, motors, and mains wiring; three-year warranty.
APF-5060 Features
- ▸ Power frequency magnetic field generator per IEC/EN 61000-4-8
- ▸ Magnetic field up to 100 A/m — with matched inductive loop antenna
- ▸ User-selectable frequency: 50 Hz or 60 Hz
- ▸ Standalone solution with corresponding loop antennas — no external amplifier required
- ▸ Current-controlled field generation — output based on the coil factor of the connected loop
- ▸ Two shrouded banana sockets — safe, convenient loop antenna connection
- ▸ Full front-panel operability
- ▸ PC remote control via fiber-optic interface cable
- ▸ Software with pre-defined coil factors for all Com-Power loops — plus user-defined coil factor entry for any loop with a known factor
- ▸ Pairs with the APF-5060-11 inductive coil, antenna positioner, and EUT stand for a complete IEC 61000-4-8 test system
- ▸ Three-year warranty
APF-5060 Specifications
| Parameter | Specification |
|---|---|
| Model | APF-5060 |
| Type | Power frequency magnetic field generator |
| Applicable Standards | IEC / EN 61000-4-8 and derived product standards |
| Operating Frequency | 50 Hz or 60 Hz (user-selectable) |
| Maximum Magnetic Field Strength | 100 A/m (with matched inductive loop antenna) |
| Field Generation Method | Current-controlled, based on connected loop coil factor |
| Loop Antenna Connection | Two shrouded banana sockets |
| Control | Front-panel operation; PC remote via fiber-optic interface |
| Software | Pre-defined coil factors for all Com-Power loops; user-defined coil factor supported |
| Recommended Inductive Coil | APF-5060-11 standard inductive coil |
| System Accessories | Antenna positioner, EUT stand |
| Warranty | 3 years |
Versatility: The control software includes pre-defined coil factors for all Com-Power loops and allows a user-defined coil factor, so the required field can be generated with any loop antenna of known coil factor.
