50 W Power Amplifier for Conducted Immunity

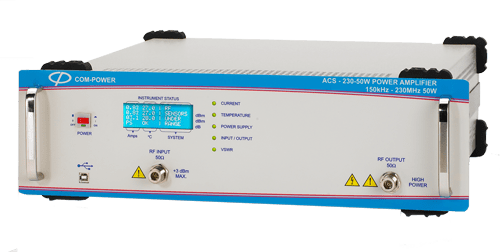

- ▸ ACS-230-50W broadband RF power amplifier, 150 kHz–230 MHz — a 50-watt RF amplifier built for IEC 61000-4-6 conducted RF immunity testing in compliance and pre-compliance EMC labs.
- ▸ 50 W rated output for demanding immunity test levels — delivers a robust 50 W into a 2:1 VSWR load, providing ample headroom to reach required test levels with a compliant CDN or coupling device.
- ▸ High 47 dB ±2 dB gain with excellent linearity — needs only a 0 dBm input for rated output, ensuring strong, consistent signal amplification for precise EMC measurements.
- ▸ Automatic safety shutoff for system protection — shutdown activates if output exceeds 50 W or load VSWR rises above 7, protecting the amplifier and connected equipment.
- ▸ Versatile AM, FM, and pulse modulation support — accepts a range of input modulations for flexible integration into different RF immunity test setups.
- ▸ Low −17 dBc harmonic distortion — clean signal delivery at full 50 W output reduces interference and improves measurement accuracy.
- ▸ Front-panel LCD and USB automation interface — the LCD shows current, temperature, RF power, VSWR, and gain; USB connectivity enables software-based test automation.
- ▸ 4U rack-mount chassis with forced-air cooling and three-year warranty — the 19-inch rackmount design keeps the unit cool during extended testing and is backed by a full 3-year warranty.
ACS-230-50W Features
- ▸ Broadband RF power amplifier — for conducted RF immunity testing
- ▸ Frequency range 150 kHz to 230 MHz
- ▸ 50 watts rated output into 2:1 VSWR
- ▸ 47 dB ±2 dB gain — 0 dBm input for rated output
- ▸ IEC 61000-4-6 conducted immunity compliance capability
- ▸ Automatic safety shutoff — above 50 W or VSWR > 7
- ▸ Low harmonic distortion — −17 dBc at 50 W
- ▸ AM, FM, and pulse modulation compatible
- ▸ Front-panel LCD — current, temperature, RF power, VSWR, gain
- ▸ USB interface — for automated testing
- ▸ Type-N connectors, forced-air cooled, 4U rack-mount
- ▸ Three-year warranty
ACS-230-50W Specifications
| Parameter | Specification |
|---|---|
| Model | ACS-230-50W |
| Type | Broadband RF power amplifier |
| Application | IEC 61000-4-6 conducted RF immunity testing |
| Frequency Range | 150 kHz to 230 MHz |
| Rated Power Output | 50 W into 2:1 VSWR |
| Gain | 47 dB ±2 dB |
| Input for Rated Output | 0 dBm (typical) |
| Automatic Safety Shut-off | 50 W ±2; also at load VSWR > 7 |
| Input Impedance | 50 Ω nominal |
| Input VSWR | 1.7 maximum |
| Input Modulation | AM, FM, or pulse |
| Output Impedance | 50 Ω nominal |
| Output VSWR | 1.7 maximum |
| Harmonic Distortion | −17 dBc at 50 W |
| Connectors | Type-N (front panel), input and output |
| AC Input Power | 100–240 VAC, 50/60 Hz (universal) |
| Display | Front-panel LCD — current, temperature, VSWR, RF power, gain |
| Remote Interface | USB; optional 2-pin DIN remote interlock |
| Cooling | Forced air (self-contained fans) |
| Size | 19" rack, 4U |
| Weight | 50 lbs (22.6 kg) |
| Operating Temperature | 0°C to +40°C |
| Warranty | 3 years |
Protection: An automatic safety shutoff activates above 50 W output or when load VSWR exceeds 7. Each amplifier is individually tested to IEC 61000-4-6 requirements before shipment.
