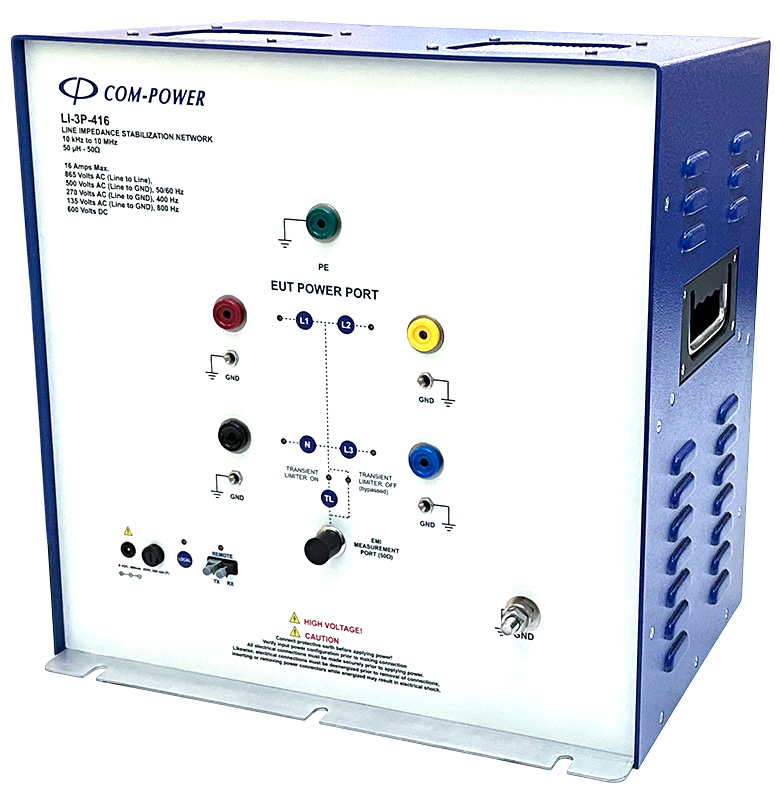

16 Amps Three-Phase LISN for MIL-STD-461 CE102 Testing
- Implements a precision 50 Ω / 50 µH four-conductor impedance stabilization network designed specifically for CE102 conducted emissions testing.
- Operates across 10 kHz–10 MHz with controlled impedance and verified insertion loss performance per MIL-STD-461 requirements.
- Supports 16 A per phase (continuous) enabling full-load validation of three-phase military and aerospace power systems.
- Fully compliant with MIL-STD-461D/E/F/G for defense, aerospace, and mission-critical EMC qualification.
- Enhances CE102 test accuracy by providing a defined and repeatable line impedance independent of facility power conditions.
- Improves validation workflows for avionics, radar systems, naval electronics, tactical vehicles, and ground-based defense platforms.
- Reduces measurement uncertainty by isolating the EUT from upstream power disturbances and facility noise.
- Optimizes multi-phase testing efficiency through remote fiber-optic line switching to minimize reconnections.
- Protects EMI receivers and spectrum analyzers via integrated transient limiting and broadband filtering networks.
- Supports extended-duration high-current testing with forced-air cooling and robust chassis grounding for stable operation.
- Frequency Range: 10 kHz–10 MHz
- Maximum Current Rating: 16 A per phase (continuous)
- Standards Compliance: MIL-STD-461D/E/F/G (CE102)
- Network Configuration: 50 Ω / 50 µH Four-Conductor
- Remote Fiber-Optic Line Switching (RLI v2.0)
- Air-Core Inductors for Saturation-Free Operation
- Integrated Transient Limiter Protection
- Dual Forced-Air Cooling System
- 50 Ω N-Type RF Measurement Port
Three-Year Standard Warranty
General
- Product Type: Three-Phase LISN
- Application: CE102 Conducted Emissions Testing
- Standards: MIL-STD-461D/E/F/G
- Network Type: 50 Ω / 50 µH Four-Conductor
- Frequency Range: 10 kHz–10 MHz
Insertion Loss
- 10 kHz–150 kHz: <26 to <21 dB
- 150 kHz–10 MHz: <21 dB
Input Power Ratings (EUT)
- Maximum Current: 16 A per phase (continuous)
- AC Voltage: 865 V rms (L-L), 500 V rms (L-G); 50/60 Hz
- AC Voltage: 270 V rms (L-G) at 400 Hz; 135 V rms (L-G) at 800 Hz
- DC Voltage: 600 V DC
Connections
- 25A receptacle pins / plug sockets / receptacle sockets / plug pins
- RF Port: 50 Ω N-Type (female)
- Fiber Optic Ports: Avago Duplex Latching POF
- Remote Power Input: 6 VDC, 500 mA
- Fan Power Input: 15 VDC, 500 mA
Environmental / Cooling
- Cooling: Louvered panels with dual forced-air internal fans
Product Weight
- Weight: 41.20 lbs (18.69 kg)
Quote Request
