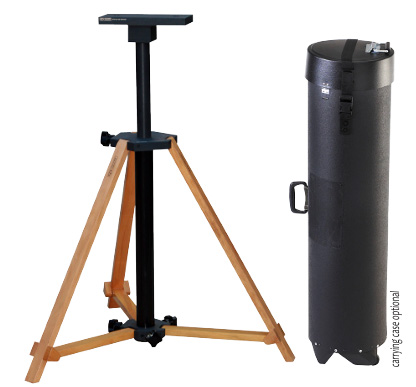

AT-812 Antenna Tripod – 22 lb Load, 32.7"–53.5" Height
Non-reflective wood and nylon construction suitable for controlled EMC environments.
- Smooth stepless height adjustment with locking knob for precise positioning.
- Supports antenna loads up to 22 lbs (10 kg) while maintaining structural stability.
- Lightweight and collapsible design for easy transport and storage.
- Ideal for radiated emissions and immunity testing applications.
- Supports log periodic, dipole, biconical, and horn antennas.
- Enables controlled antenna height scanning during compliance measurements.
- Suitable for semi-anechoic chamber and open-area test site use.
- Supports vertical and horizontal polarization test configurations.
- Optional carrying case available for field testing and mobile lab setups.
- 22 lb Load Capacity
- 32.7"–53.5" Height Range
- Wood & Nylon Construction
- Non-Reflective Frame
- Collapsible Structure
- 1/4-20 Mount Threads
- Optional Carry Case
- 3-Year Warranty
AT-812 Specifications:
| Specification | Details |
|---|---|
| Height Range | 83 cm to 136 cm (32.7" to 53.5") |
| Maximum Load | 22 lbs (10 kg) |
| Tripod Weight | 12.5 lbs (5.7 kg) |
| Construction | Wood & Nylon |
The table below shows AT-812 for suitable antenna models.
| Model No. | Tripod Height Range | Construction | For Antenna Models |
|---|---|---|---|
| AT-812 | 83 cm to 136 cm (32.7" to 53.5") | Wood & Nylon | AL-100, ALP-100, ALC-100, AC-220, AH-8055, AL-130R, AH-118, AHA-118, AH-640, AH-826, AH-840, AHA-840, AB-900A, ABF-900A, ABM-6000, AD-100, AM-741R |
Note: For tripod height extensions or custom height requirements, please contact us.
| Title | Link |
|---|---|
| At-812 Datasheet | View PDF |
