4 Feet Automated Turntables for EMC Testing

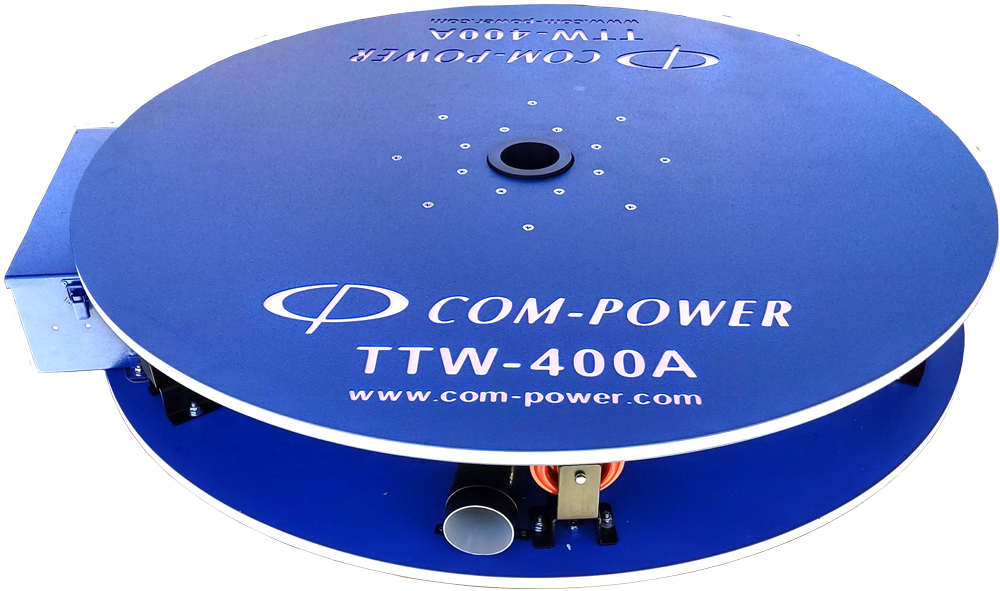

- ▸ TTW-400A automated EMC turntable, 4-foot diameter — a fully automated, low-profile motorized rotation platform for spinning the equipment under test (EUT) during commercial EMC radiated emissions testing.
- ▸ Fully automated control via the Com-Power AMTTC-300 — the turntable is driven through the AMTTC-300 controller, enabling programmed azimuth rotation and unattended, repeatable radiated test sequences.
- ▸ Manual toggle-switch backup on the motor box — in addition to automated operation, the TTW-400A can be controlled directly via a toggle switch on the table's motor box.
- ▸ Locates the maximum-emission angle automatically — programmed rotation lets the test system find the orientation at which the EUT radiates peak electromagnetic interference for compliance measurements.
- ▸ Higher 1100 lb (500 kg) load capacity — the 4 ft (1.2 m) automated platform supports and rotates desktop or floor-standing equipment weighing up to 1100 lbs.
- ▸ Rugged, stable construction for indoor and outdoor use — built to be robust and stable, the TTW-400A performs reliably in both chamber and open-area test sites.
- ▸ Non-reflective material for clean measurements — the turntable is constructed from non-reflective material so it introduces no reflections into radiated emissions testing.
- ▸ Ideal for automated radiated emissions test systems — pairs with a Com-Power antenna mast and the AMTTC-300 controller to build a fully automated EMC measurement setup.
TTW-400A Features
- ▸ Fully automated motorized EMC turntable — for radiated emissions testing
- ▸ 4-foot (1.2 m) table diameter
- ▸ Automated control through the Com-Power AMTTC-300 controller
- ▸ Manual toggle-switch control on the motor box
- ▸ Load capacity up to 1100 lbs (500 kg)
- ▸ Rugged, stable construction — excellent for indoor and outdoor use
- ▸ Non-reflective material — no measurement reflections
- ▸ Rotates the EUT to find the maximum-emission angle
- ▸ Integrates with Com-Power antenna masts for automated test systems
TTW-400A Specifications
| Parameter | Specification |
|---|---|
| Model | TTW-400A |
| Type | Fully automated motorized EMC turntable |
| Table Diameter | 4 feet (1.2 m) |
| Load Capacity | Up to 1100 lbs (500 kg) |
| Control | Automated via Com-Power AMTTC-300 controller |
| Manual Control | Toggle switch on motor box |
| Rotation Drive | Motor and gear-reduction drive |
| Construction | Rugged, stable, non-reflective material |
| Use Environment | Indoor and outdoor |
Construction: Rugged, stable, non-reflective construction makes it suitable for both indoor and outdoor EMC test sites.
| Title | Link |
|---|---|
| Datasheet | View PDF |
