6 Feet manually operated Turntable

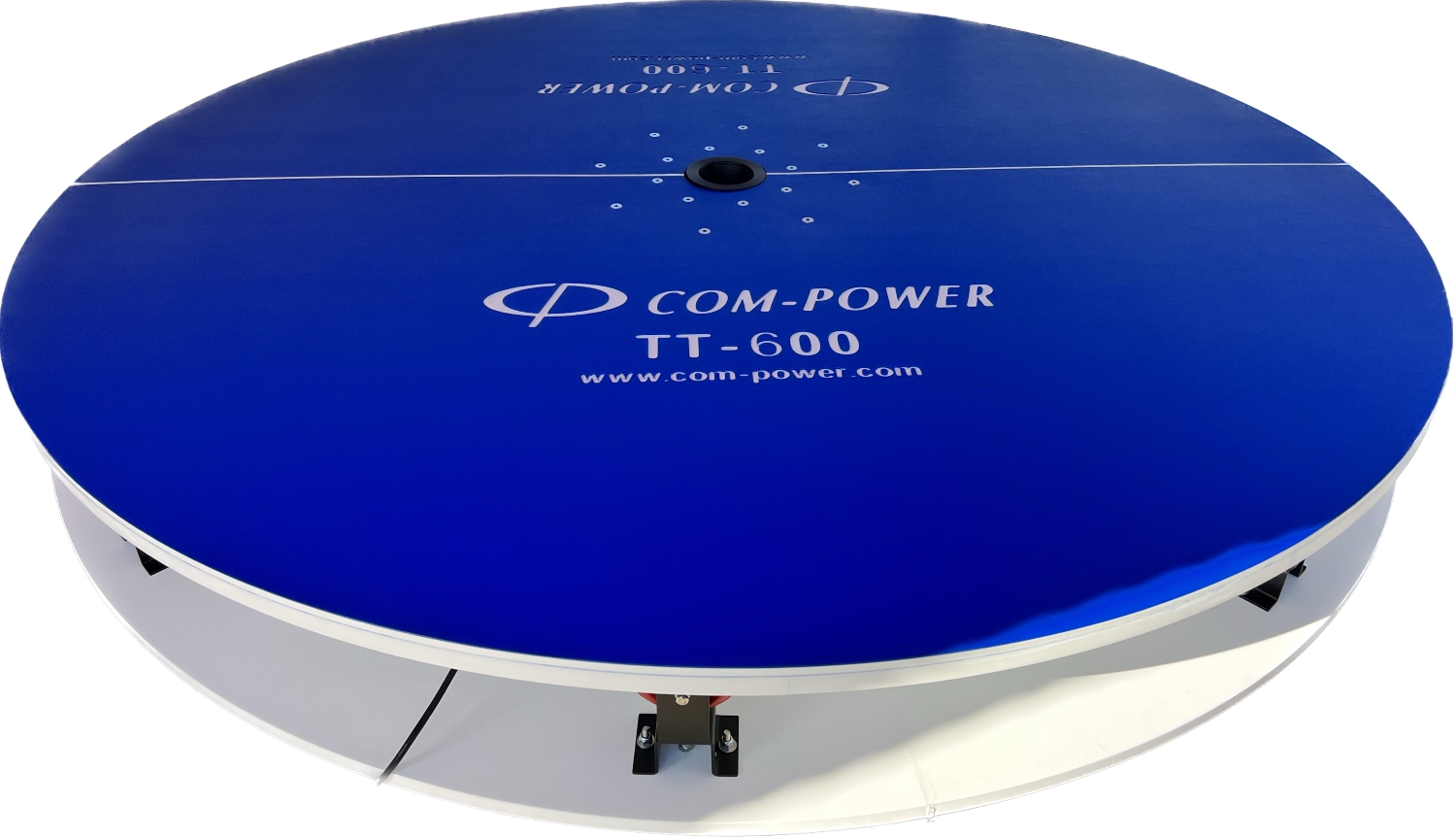

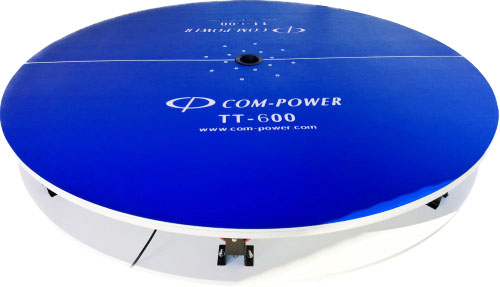

- ▸ TTW-600 manually operated EMC turntable, 6-foot diameter — a low-profile, above-ground motorized testing platform that rotates large equipment under test (EUT) during commercial EMC radiated emissions testing.
- ▸ Larger 6 ft platform for bigger EUTs — the 6 ft (1.8 m) non-conductive table accommodates large desktop and floor-standing equipment that exceeds the capacity of a 4 ft turntable.
- ▸ Identifies the maximum-emission orientation — full rotation of the EUT lets the operator locate the angle of peak electromagnetic interference for radiated emissions compliance measurements.
- ▸ Clockwise/counterclockwise control via remote switch — a reversing-drum remote turns the turntable in either direction from outside the measurement area on a 9.8 ft (3 m) extension cable.
- ▸ Motor and gear-reduction rotation drive — an electric motor paired with a gear-reduction unit delivers smooth, stable 1.4 RPM rotation under heavy load.
- ▸ Handles equipment up to 1000 lbs — the platform supports and rotates EUTs weighing up to 1000 lbs (455 kg), at a low 9 in (23 cm) table height.
- ▸ Non-conductive construction for clean measurements — built from non-conductive material so the turntable introduces no reflections into radiated emissions testing.
- ▸ Optional loading ramp available — any optional ramp can be purchased with the turntable to load heavy equipment onto the low-profile platform.
TTW-600 Features
- ▸ Manually operated motorized EMC turntable — for radiated emissions testing
- ▸ 6-foot (1.8 m) table diameter — for larger EUTs
- ▸ Rotates the EUT to find the maximum-emission angle
- ▸ Reversing-drum remote switch — clockwise/counterclockwise control
- ▸ Motor and gear-reduction rotation drive — 1.4 RPM
- ▸ 1000 lb (455 kg) load rating
- ▸ Low 9-inch profile — above-ground platform
- ▸ Non-conductive construction — no measurement reflections
- ▸ 9.8 ft (3 m) extension cable
- ▸ Optional loading ramp available
TTW-600 Specifications
| Parameter | Specification |
|---|---|
| Model | TTW-600 |
| Type | Manually operated motorized EMC turntable |
| Table Diameter | 6 feet (1.8 m) |
| Table Height | 9 inches (23 cm) |
| Load Rating | 1000 lbs (455 kg) |
| Turntable RPM | 1.4 |
| Power | 115 VAC, 60 Hz |
| Remote Switch | Reversing drum |
| Rotation Drive | Motor and gear-reduction drive |
| Extension Cable | 9.8 feet (3 m) |
| Construction | Non-conductive material |
| Table Weight | 172 lbs (78 kg) |
| Optional | Loading ramp |
Construction: Non-conductive material keeps the turntable from adding reflections to radiated emissions measurements. An optional loading ramp is available for heavy equipment.
