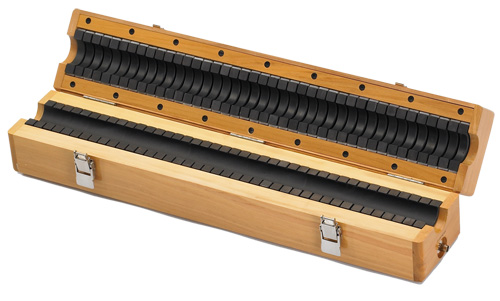

Absorbing Clamp 35 mm Aperture

CLA-150

30 MHz to 1 GHz

absorbing clamp

Absorbing Clamp 35 mm Aperture

  • Used for CISPR 16 Part 1-3 The absorbing clamp CLA-150 was designed for EMC emissions measurement of from electrical instruments via their connecting leads. The absorbing clamp is described in CISPR 16 part 1-3: Radio disturbance and immunity measuring apparatus.
  • Every absorbing clamp is calibrated uniquely with NIST traceability in accordance with CISPR 16-1-3. Both the certificate and the calibration data are included with the unit. On request, authorized ISO 17025 calibration is also offered.
  • Because of its incredibly sturdy design, the chassis is an excellent option for regular indoor and outdoor laboratory use.
  • Clamp may be easily moved along the length of the line(s) under test thanks to the handle at the top and the wheels at the bottom.
  • The primary distinction between the two clamps is the aperture size: the CLA-050 has an aperture size of 0.5" and the CLA-150 has an aperture size of 1.4".

Frequently bought together
  • Frequency Range 30 - 1000 MHz
  • Test to CISPR 14 (EN 55014) requirements
  • Individual Calibration
  • Two Year Warranty
  • Frequency Range: 30 - 1000 MHz
  • Impedance: 50 Ohm
  • Connector Type: BNC (f)
  • Max cable diameter: 32 mm (1.26 inches)
  • Aperture size: 34.9 mm (1.37 inches)
  • Weight: 21 lbs (9.5 Kg)
  • Dimensions: 627 x 114 x 165 mm (24.7 x .4.5 x 6.5 inches)

chart chart chart
