Broadband Power Amplifier: For Conducted Susceptibilty

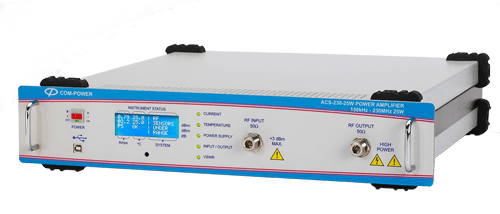

- ▸ ACS-230-25W broadband RF power amplifier, 150 kHz–230 MHz — a 25-watt RF amplifier engineered for IEC 61000-4-6 conducted RF immunity testing in compliance and pre-compliance EMC labs.
- ▸ Drives standard EMC immunity test levels — delivers 25 W into a 2:1 VSWR load, enough to reach 3 V/10 Vrms test levels with a compliant CDN, EM clamp, or injection probe.
- ▸ High 43 dB ±2 dB gain needs only 0 dBm drive — requires just a 0 dBm input signal for full-rated output, allowing the signal generator to run within its low-distortion range.
- ▸ Automatic safety shutoff protects amplifier and test system — built-in shutoff activates at 30 W or when load VSWR exceeds 7, guarding against overload and mismatch damage.
- ▸ Low −20 dBc harmonic distortion for clean RF — produces a clean output signal at 25 W for reliable, accurate conducted immunity measurements.
- ▸ Front-panel LCD for real-time monitoring — displays amplifier current, temperature, RF input/output power, gain, and load VSWR throughout the test.
- ▸ USB interface for automated IEC 61000-4-6 testing — supports software integration to automate conducted immunity workflows and data collection.
- ▸ Compact 2U rack-mount design with three-year warranty — fits 19-inch racks with self-contained forced-air cooling; each unit is individually tested before shipment.
ACS-230-25W Features
- ▸ Broadband RF power amplifier — for conducted RF immunity testing
- ▸ Frequency range 150 kHz to 230 MHz
- ▸ 25 watts rated output into 2:1 VSWR
- ▸ 43 dB ±2 dB gain — 0 dBm input for rated output
- ▸ IEC 61000-4-6 conducted immunity compliance capability
- ▸ Automatic safety shutoff — at 30 W or VSWR > 7
- ▸ Low harmonic distortion — −20 dBc at 25 W
- ▸ AM, FM, and pulse modulation compatible
- ▸ Front-panel LCD — current, temperature, RF power, VSWR, gain
- ▸ USB interface — for automated testing
- ▸ Type-N connectors, forced-air cooled, 2U rack-mount
- ▸ Three-year warranty
ACS-230-25W Specifications
| Parameter | Specification |
|---|---|
| Model | ACS-230-25W |
| Type | Broadband RF power amplifier |
| Application | IEC 61000-4-6 conducted RF immunity testing |
| Frequency Range | 150 kHz to 230 MHz |
| Rated Power Output | 25 W into 2:1 VSWR |
| Gain | 43 dB ±2 dB |
| Input for Rated Output | 0 dBm (typical) |
| Automatic Safety Shut-off | 30 W ±2; also at load VSWR > 7 |
| Input Impedance | 50 Ω nominal |
| Input VSWR | 1.7 maximum |
| Input Modulation | AM, FM, or pulse |
| Output Impedance | 50 Ω nominal |
| Output VSWR | 1.7 maximum |
| Harmonic Distortion | −20 dBc at 25 W |
| Connectors | Type-N (front panel), input and output |
| AC Input Power | 100–240 VAC, 50/60 Hz |
| Display | Front-panel LCD — current, temperature, VSWR, RF power, gain |
| Remote Interface | USB; optional 2-pin DIN remote interlock |
| Cooling | Forced air (self-contained fans) |
| Size | 19" rack, 2U |
| Weight | 25 lbs (11.3 kg) |
| Operating Temperature | 0°C to +40°C |
| Warranty | 3 years |
Protection: An automatic safety shutoff activates at 30 W output or when load VSWR exceeds 7. Each amplifier is individually tested to IEC 61000-4-6 technical requirements before shipment.
