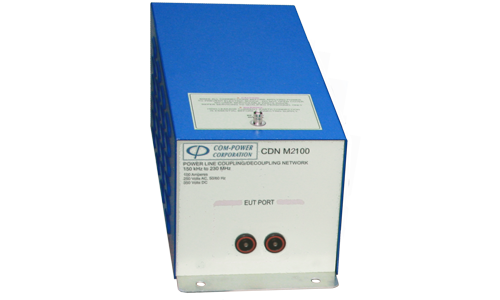

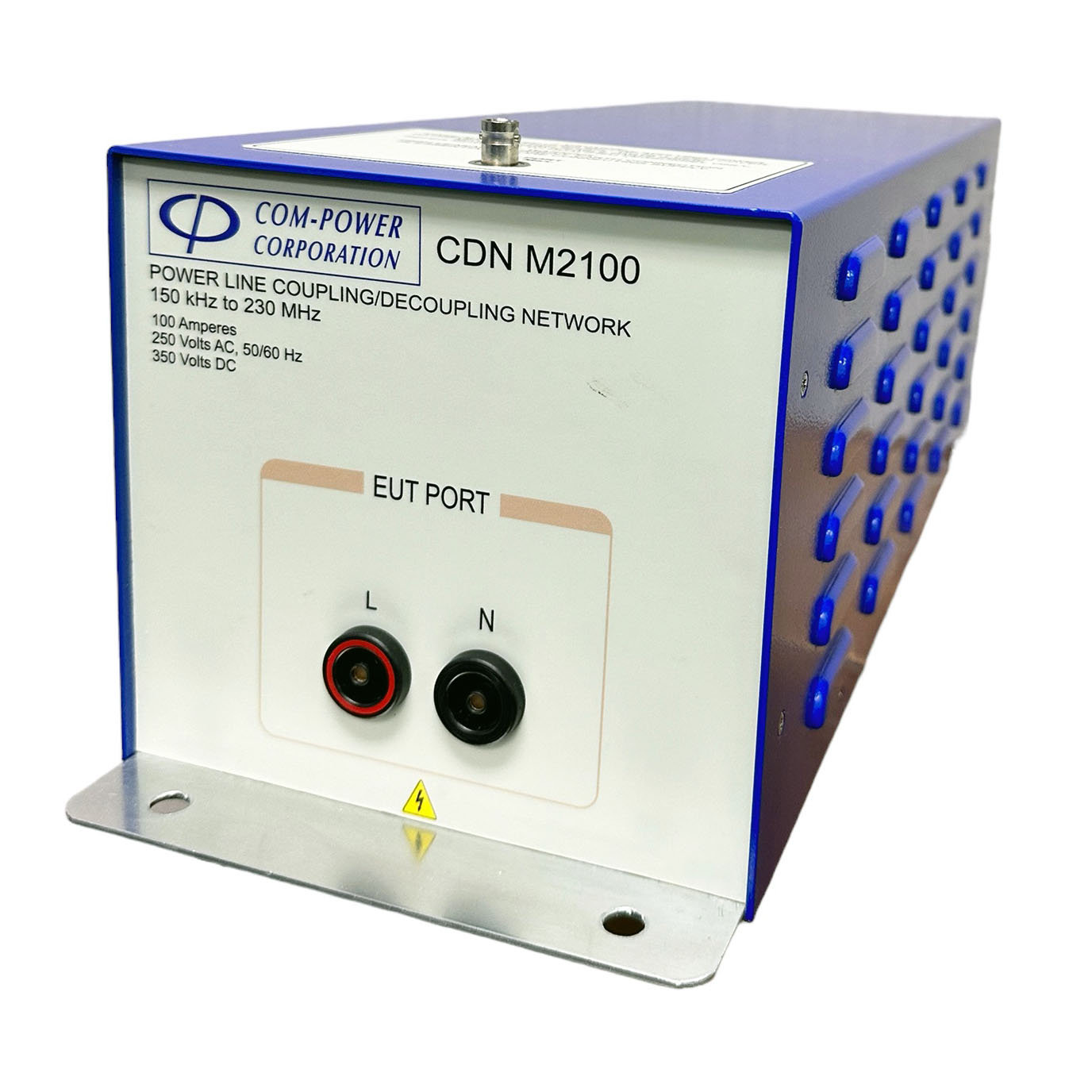

CDN-M2100 - Coupling Decoupling Network for two-line power cable

150 kHz to 230 MHz

Dual-line 100A power CDN-M2100 for IEC 61000-4-6 conducted immunity testing

Powerline 100 Amp CDN for Two Conductors

▸ Two-line 100 A high-current power CDN, 150 kHz–230 MHz — the highest dual-line M-series rating, supporting 2-wire DC or single-phase AC at 100 A per IEC 61000-4-6.
▸ 5.2 mm banana sockets with shrouded sheath, 250 VAC / 350 VDC — heavy-duty connections for very-high-current 2-wire systems.
▸ 150 Ω common-mode impedance, 9.5 dB VDF, 50 Ω BNC RF port — standard IEC 61000-4-6 coupling profile maintained at 100 A continuous per line.
▸ EV charging cable and DC fast-charge output testing — CCS / CHAdeMO DC-output stages and high-power battery charging cables drawing 100 A continuous DC.
▸ Energy storage system DC bus testing — battery energy storage systems (BESS), grid-scale storage inverter DC inputs, and home backup systems with high DC current.
▸ Industrial 2-wire 100 A DC systems — electroplating, electrolysis, and industrial DC process equipment with very high current draw on simple 2-wire architecture.
▸ Heavy-duty AC mains products on 2-wire service — commercial induction-melting furnaces, large welders, and industrial heaters drawing up to 100 A on single-phase L+N service.
▸ NIST-traceable individual calibration with three-year warranty — ISO/IEC 17025 accredited calibration optional; ADA-515-X 150 Ω / 50 Ω calibration adapters available separately for IEC 61000-4-6 test-level setting; integrates into Com-Power Conducted Immunity Test Systems.

CDN-M2100 Features

▸ Power-line CDN for Two-line high-current DC or single-phase AC without ground — 2 lines configuration designed per IEC 61000-4-6 for conducted RF immunity testing of equipment power supplies
▸ 100 A per line continuous current rating covering 250 VAC / 350 VDC mains operation; 5.2 mm banana sockets with shrouded sheath for safe, repeatable EUT and AE power connections
▸ Frequency range 150 kHz to 230 MHz — covers the entire IEC 61000-4-6 standard band including the optional extended-band test region up to 230 MHz
▸ 150 Ω common-mode impedance profile per IEC 61000-4-6 with 9.5 dB voltage division factor (VDF) for accurate, repeatable test-level setting
▸ 50 Ω BNC (female) RF injection port — direct connection to immunity-test power amplifier output through standard 50 Ω coaxial cable
▸ 40 V_rms maximum RF input — supports test levels of 1, 3, and 10 V_rms per IEC 61000-4-6 with comfortable headroom
▸ High decoupling between EUT and AE ports — prevents auxiliary equipment from being stressed and prevents test signals from feeding back into the building mains
▸ Sturdy aluminum enclosure with carry handle — benchtop and floor-standing operation; ground stud on rear panel for proper reference-plane bonding
▸ NIST-traceable individual calibration with ISO/IEC 17025 accredited calibration available on request; all units shipped with calibration certificate
▸ Compatible with ADA-515-X 150 Ω / 50 Ω calibration adapters for test-level setting per IEC 61000-4-6 setup procedure
▸ Three-year warranty — covers manufacturing and workmanship defects

CDN-M2100 Specifications

Parameter	Specification
Model	CDN-M2100
CDN Type / Application	M-Series Power-Line CDN — Two-line high-current DC or single-phase AC without ground
Number of Power-Line Conductors	2
Applicable Standards	IEC / EN 61000-4-6, CISPR 16-1-2
Frequency Range	150 kHz to 230 MHz
Max Continuous Current (per line)	100 A
Max Line Voltage (L – G)	250 VAC / 350 VDC
EUT / AE Power Connectors	5.2 mm banana sockets with shrouded sheath
RF Injection Port	50 Ω BNC (female)
Max RF Input Voltage	40 V_rms
Common-Mode Impedance	150 Ω (IEC 61000-4-6 profile)
Voltage Division Factor (VDF)	9.5 dB (typical, with specified tolerance)
Decoupling (EUT ↔ AE)	High isolation per IEC 61000-4-6
Calibration	NIST-traceable; ISO/IEC 17025 accredited optional
Warranty	3 years

Calibration: Each unit is supplied with NIST-traceable individual calibration data. ISO/IEC 17025 accredited calibration is available on request.
Test-level setup: ADA-515-X 150 Ω to 50 Ω calibration adapters (sold separately) are required for setting IEC 61000-4-6 test levels (typically 1, 3, and 10 V_rms) prior to testing the EUT.

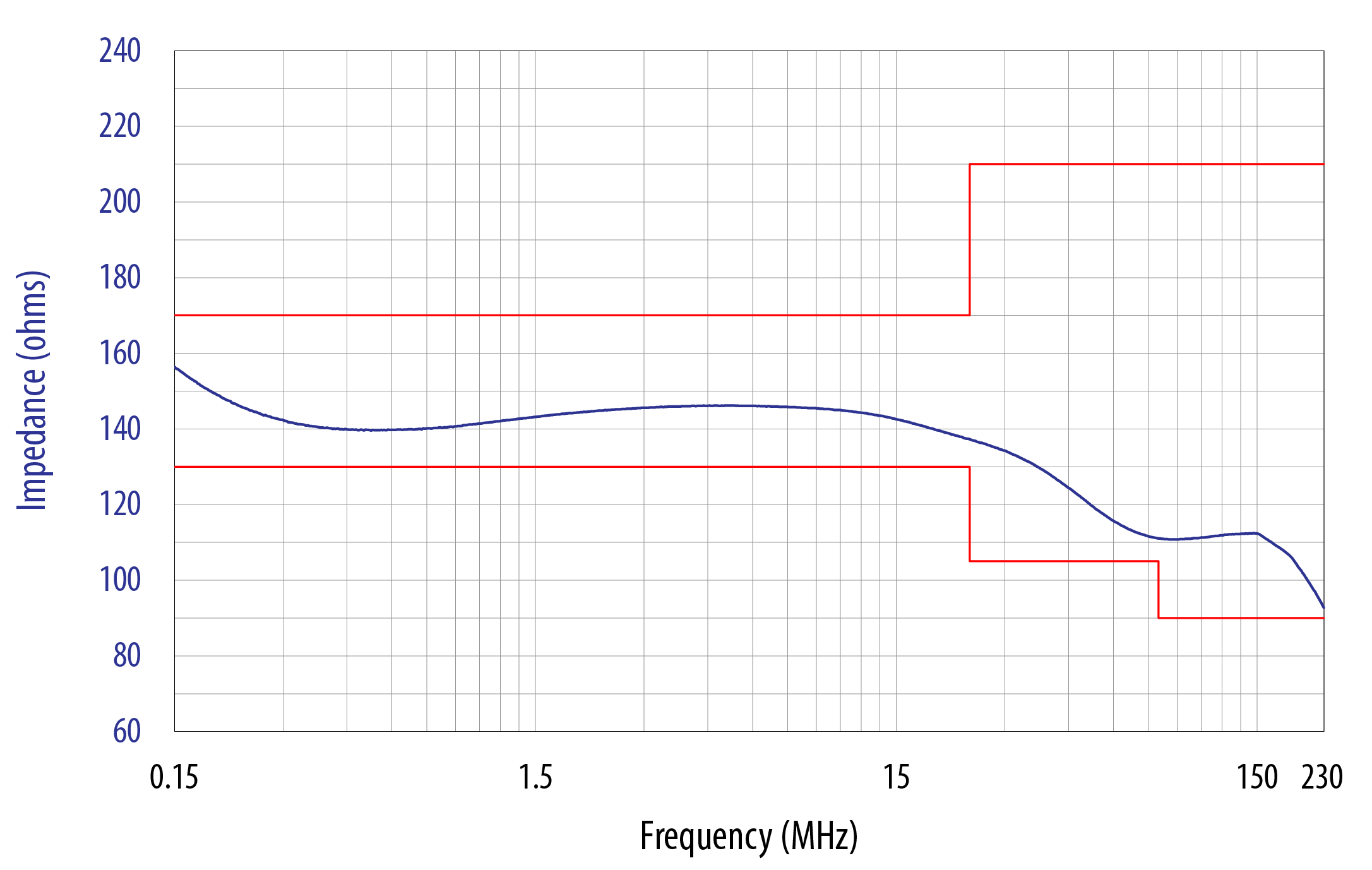

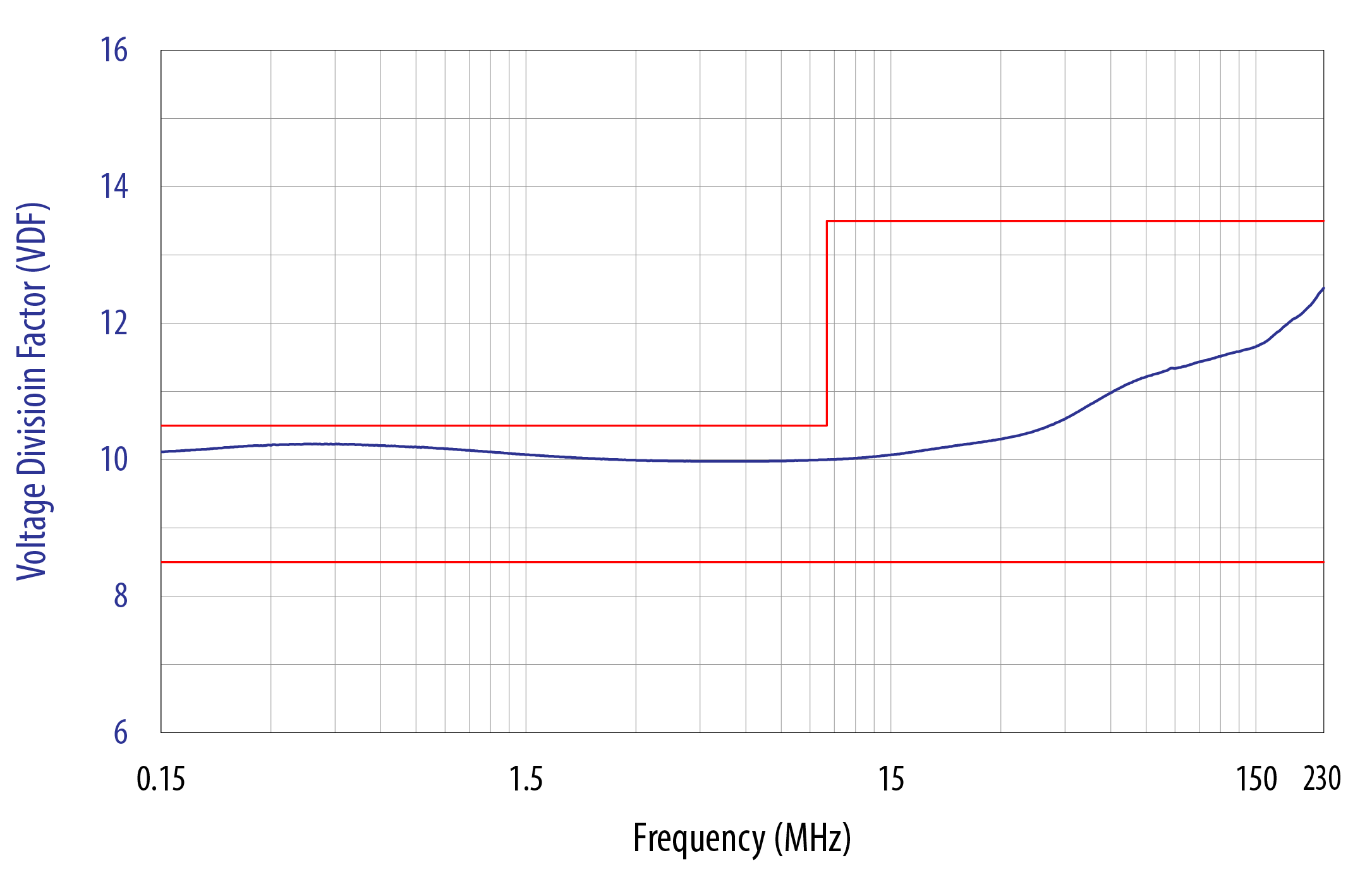

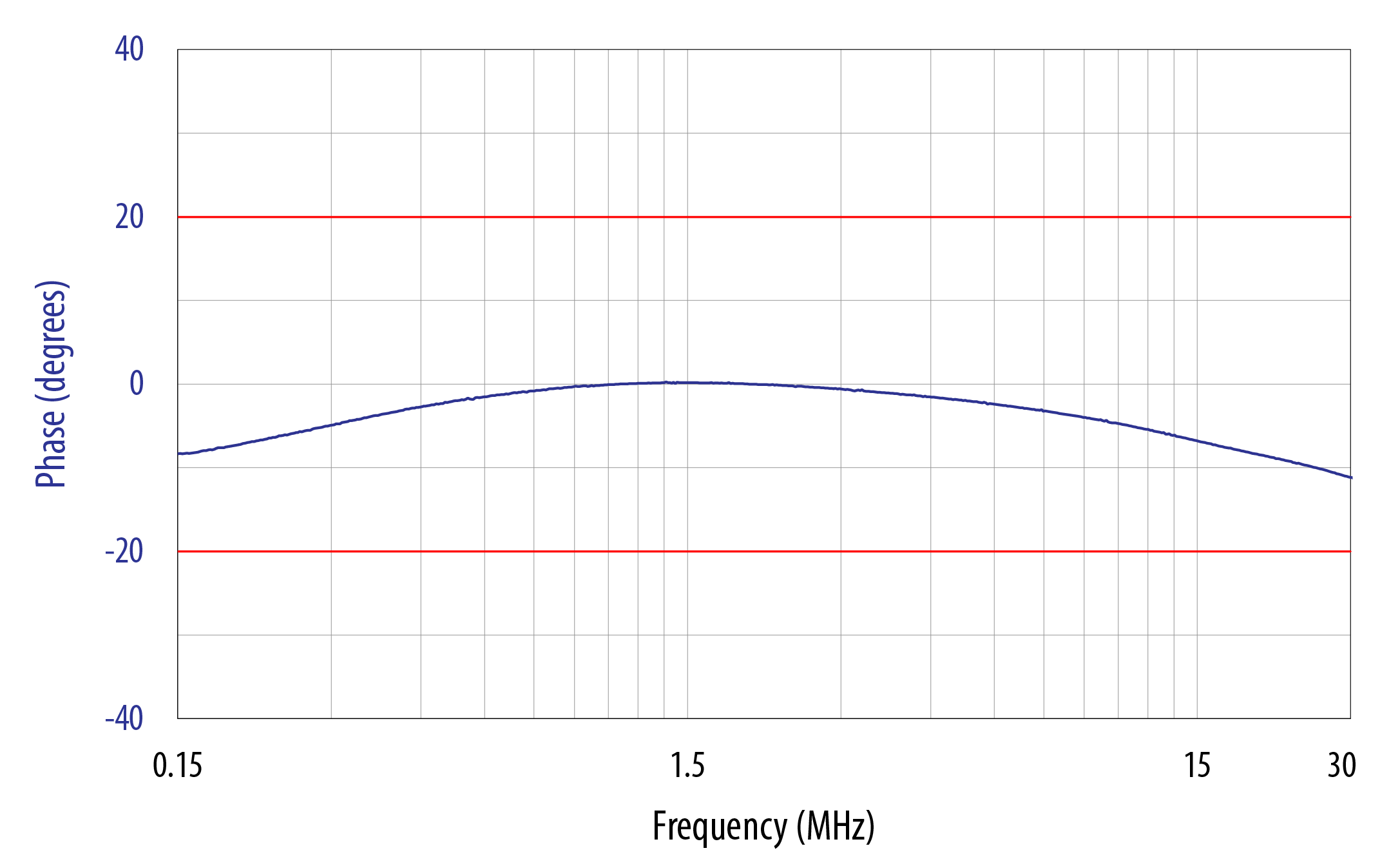

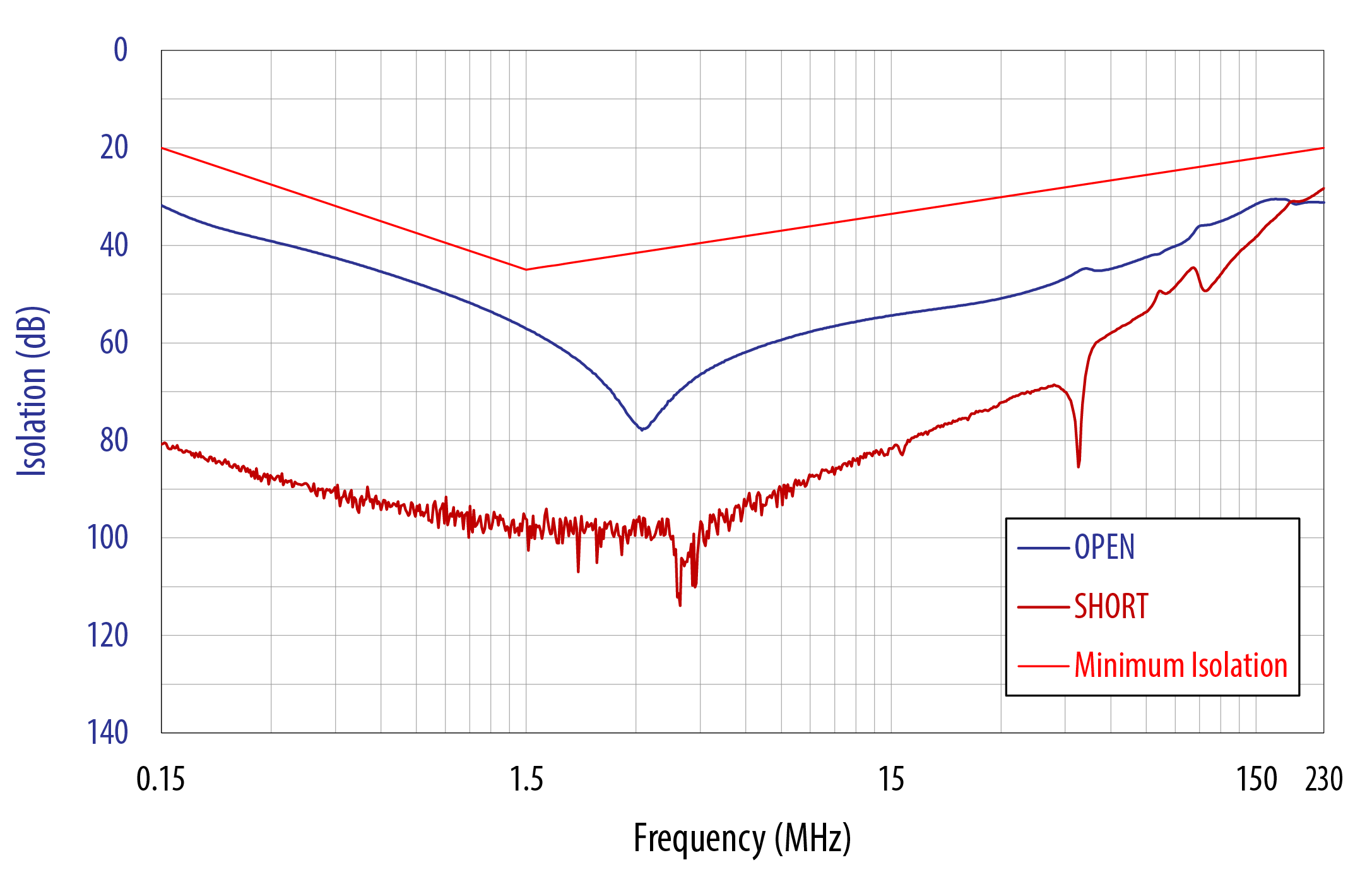

CDN-M2100 Impedance CDN-M2100 Phase CDN-M2100 VDF CDN-M2100 Isolation
