Powerline CDN for Two Conductors

(855) 364-2362

Supports conducted immunity testing on two power conductors in accordance with IEC/EN 61000-4-6, over 150 kHz to 230 MHz.
Rated for 25 A per line, suitable for low-power dual-line or split-supply systems.
Used for testing single-phase AC equipment with line and neutral, while maintaining uninterrupted power to the EUT.
Common in industrial power supplies, office equipment, lighting controllers, and small motor drives.
Enables evaluation of RF susceptibility when both conductors are simultaneously stressed by common-mode disturbances.
Helps manufacturers verify compliance without altering normal power wiring or load conditions.
Ensures stable, repeatable test setups by preserving the required ground reference and impedance profile.
Well suited for EMC labs and in-house test facilities performing routine IEC 61000-4-6 testing.

Frequency Range: 150 kHz to 230 MHz
Current Ratings of 25, 50 and 100 Amps
Single-Line (M1), Two-Line (M2), Three-Line (M3), Four-Line (M4) and Five-Line (M5) Models
Fully Compliant with CISPR 16-1-2 and IEC 61000-4-6
Three-Year Warranty

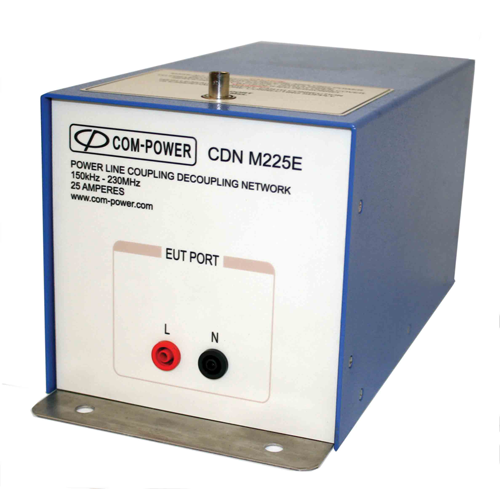

Product Name: Coupling Decoupling Network (CDN)
Compliant Test Standards: IEC / EN 61000-4-6
Application: Two conductor power cable
Frequency Range: 150 kHz to 230 MHz
RF Input Voltage: 40 V (Max)
RF Input Connector: 50 Ω BNC (Female)
Voltage Rating: 250 V AC / 350 V DC (Line to Ground)
Current Rating: 25 Amps AC / 17 Amps DC (Max)
AE and EUT Connections: 4 mm shrouded banana sockets
Common Mode Impedance
- 150 kHz - 26 MHz: 150Ω ± 20Ω
- 26 MHz - 80 MHz: 150Ω + 60Ω / – 45Ω
- 80 MHz - 230 MHz: 150Ω + 60Ω / – 60Ω
Voltage Division Factor: 9.5 dB +4 / -1
Decoupling of Common Mode Disturbance: ≥ 40dB (EUT/AE)
Dimensions: 6 x 6 x 13 inches or 15.2 x 15.2 x 33 cm
Weight: 5 lbs. or 2.3 kg
Accessories Available from Com-Power for setting test levels and running the test:
- ADA-M225E shorting adapters
- ADA-515-2 150 Ω to 50 Ω adapters
- TEP-050 50 Ω Terminator
- ATTN-6-100W Power Attenuator
- DCU-300-100W Directional Coupler
- ASC series Power Amplifiers
