Current Monitoring Probe

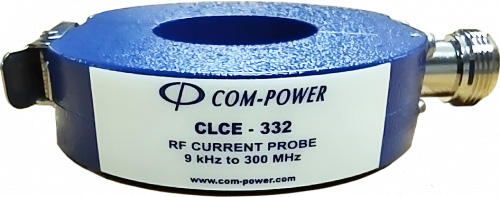

- ▸ CLCE-332 RF current monitoring probe, 9 kHz to 300 MHz — a wideband split-core current probe for conducted emissions measurement and RF current monitoring across commercial, automotive, military, and aerospace EMC testing.
- ▸ Standards-compliant current probe for CISPR, MIL-STD-461, and RTCA DO-160 — meets CISPR 16-1-2 requirements for current monitoring probes and supports conducted emissions and immunity testing per CISPR 22/32, MIL-STD-461, and DO-160.
- ▸ 32 mm (1.26") aperture for standard cables and bundles — fits the most common power cords and cable harnesses encountered in commercial, automotive, and aerospace conducted emissions testing.
- ▸ Nominal 5 Ω transfer impedance (−40 to +15 dBΩ) for accurate conversion — provides reliable RF current-to-voltage conversion across the full operating range with 50 Ω instruments.
- ▸ Robust current handling for stress and immunity testing — rated for 56 A DC, 42 A AC at 400 Hz, 3 A RF continuous, and 1300 A pulse (8/20 µs), well suited to demanding test environments.
- ▸ Hinged split-core design for fast, non-intrusive clamp-on measurement — opens to clamp over installed cables and harnesses without disconnecting connectors, then functions as a toroidal transformer for safe, contactless RF current sensing.
- ▸ Ideal for Bulk Current Injection (BCI) immunity current monitoring — precisely monitors applied RF current during BCI conducted susceptibility testing (such as MIL-STD-461 CS114), validating that injected levels meet test requirements.
- ▸ NIST-traceable individual calibration for accurate, repeatable results — each probe ships with NIST-traceable transfer impedance calibration data; ISO/IEC 17025 accredited calibration available on request, with a three-year warranty.
- ▸ Optimized for use with Com-Power accessories — pairs with the FCLCE-332 Calibration Fixture and the SPA-932TG Spectrum Analyzer for full system compatibility and a complete, standards-compliant RF current measurement setup.
CLCE-332 Features
- ▸ RF current monitoring / sensing probe — for conducted emissions and immunity testing
- ▸ Frequency range 9 kHz to 300 MHz
- ▸ Meets CISPR 16-1-2 requirements for current monitoring probes
- ▸ Suitable for CISPR 22/32, MIL-STD-461, and RTCA DO-160 EMC testing
- ▸ 32 mm (1.26") aperture — fits the target cable and bundle range
- ▸ Hinged split-core design — clamps over installed cables without interrupting the setup
- ▸ Inductive toroidal-transformer measurement — safe, non-contact RF current sensing
- ▸ Type-N (female) connector — consistent, high-quality RF interfacing
- ▸ Ideal for Bulk Current Injection (BCI) immunity current monitoring
- ▸ NIST-traceable individual calibration — ISO/IEC 17025 accredited calibration available on request
- ▸ Three-year warranty
CLCE-332 Specifications
| Parameter | Specification |
|---|---|
| Model | CLCE-332 |
| Type | RF current monitoring / sensing probe |
| Applicable Standards | CISPR 16-1-2; CISPR 22/32, MIL-STD-461, RTCA DO-160 |
| Frequency Range | 9 kHz to 300 MHz |
| Window (Aperture) Inside Diameter | 1.26" (32 mm) |
| Outside Diameter | 2.83" (72 mm) |
| Height | 0.76" (19.3 mm) |
| Weight | 0.275 lbs (0.125 kg) |
| Connector | Type-N (female) |
| Core Design | Hinged split-core (clamp-on) |
| Transfer Impedance (Zt) | 5 Ω |
| Transfer Impedance (dBΩ) | −40 to +15 dBΩ (typical) |
| Max Primary Current (DC–60 Hz) | 56 A |
| Max Primary Current (400 Hz) | 42 A |
| Max Primary Current (RF) | 3 A |
| Pulse Current (8/20 µs) | 1300 A |
| Max Core Temperature | 248°F (120°C) |
| Calibration | NIST-traceable individual calibration; ISO/IEC 17025 accredited optional |
| Warranty | 3 years |
Measurement system: For a complete RF current measurement and monitoring setup, pair the probe with the SPA-932TG Spectrum Analyzer. The probe is also ideal for monitoring applied current during Bulk Current Injection (BCI) conducted immunity testing.
| Title | Link |
|---|---|
| CLCE-332 Datasheet | View PDF |
