Current Probe for Emissions Measurement

(855) 364-2362

CLCE-452

10 kHz to 400 MHz

current probe

Current Probe for Emissions Measurement

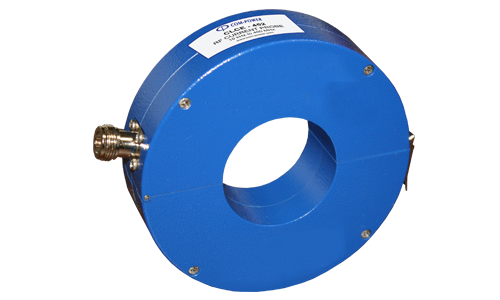

The CLCE-452 RF Current Probe is part of Com-Power’s extensive line of radio frequency conducted emission/ immunity test equipment and calibration accessories. The CLCE-452 was designed to accommodate thick cable bundles(s), up to two inches in diameter. It is suitable for compliance level conducted emissions/ disturbance current measurements, such as those required by CISPR 22, CISPR 32, RTCA DO-160 and MILSTD-461 standards, to name just a few. The CLCE-452 incorporates a split-core ferrite into its rugged, circular enclosure. The probe enclosure is hinged, allowing the probe to be opened on one side in order to easily place the wire, cable(s) or cable bundle(s) to be tested into the probe window. This makes the CLCE-452 much more convenient to use than other non-split core probes.



  • Frequency Range: 10 kHz to 400 MHz
  • Accommodates cable bundle diameters up to two inches (52 mm)
  • Suitable for Compliance-Level Conducted Emissions (Current) Measurements
  • Individual Calibration Included
  • Three-Year Warranty



  • Product: RF Current Probe
  • Frequency Range: 10 kHz to 400 MHz
  • Transfer Impedance (typical): 0.25 to 3 ohms (-12 to 8 dBΩ)
  • Standard(s): MIL-STD-461, RTCA DO-160D, CISPR 16, CISPR 22, CISPR 32, etc.
  • Impedance: 50Ω (nominal)
  • Coaxial RF Connector: N-type (female)
  • Dimensions (H)x(W)x(D): 4.9” x 1.4” x 5.9” (125 x 36 x 150 mm)
  • Probe Window Diameter: 2” (52 mm)
  • Weight: 1.5 lbs (0.68 kg)
  • Operating Temperature: 40° F to 104° F (5° C to 40° C)
  • Accessories Available from Com-Power: FCLCE-452 Calibration Fixture, CLCI-series Bulk Current Injection Probes,  ACS-Series Power Amplifiers


chart
