Current monitoring / Sensing probes for CISPR MIL-STD 461 & DO-160

CLCE-1032

9 kHz to 1000 MHz

Current monitoring / Sensing probes for CISPR MIL-STD 461 & DO-160

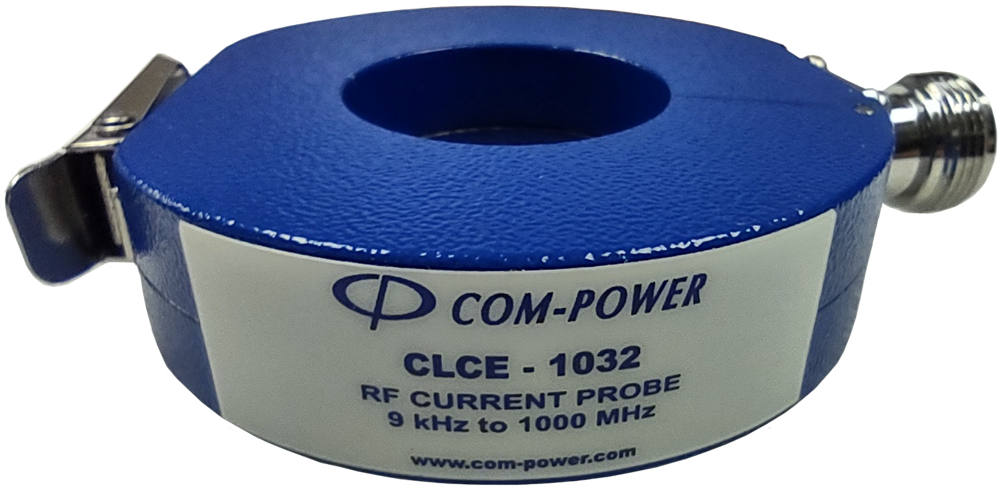

The CLCE-1032 RF Current Probe is part of Com-Power's extensive line of radio frequency conducted emission/ immunity test equipment and calibration accessories.

The CLCE-1032 is suitable  for compliance measurements required by CISPR 22, CISPR 32, DO-160, Mil Std 461 etc, as well as for applied current monitoring during conducted immunity tests.

It's design incorporates a split-core ferrite in a rugged, circular hinged enclosure; thereby allowing the probe to be opened on one side in order to easily place the wire, cable(s) or cable bundle(s) to be tested into the probe window, making the CLCE-1032 much more convenient to use than other non-split core probes.

The CLCE-1032 is designed to be used in conjunction with a spectrum analyzer or EMI receiver or any 50Ω impedance measurement equipment, which measure magnitude quantities in terms of true rms voltage.


  • Frequency Range: 9 kHz to 1000 MHz
  • Suitable for CISPR, Mil-Std 461 & DO-160
  • Individual calibration
  • Three-year warranty
  • Frequency Range: 9 kHz to 1000 MHz
  • Window (Aperture) Inside Diameter: 1.26" (32 mm)
  • Outside Diameter: 2.83" (72 mm)
  • Height: 0.76" (19.3 mm)
  • Weight: 0.275 lbs. (0.125 kg)
  • Connector: Type-N (Female)
  • Transfer impedance (ZtΩ): 1Ω
  • Transfer impedance (dBΩ): -40 to 2 dBΩ (typical)*
  • Max Primary Current (DC-60 Hz): 150 Amps
  • Max Primary Current (400 Hz): 135 Amps
  • Max Primary Current (RF): 2 Amps
  • Max. Core Temperature: 248 °F (120°C)
  • Pulse (8/20 µs):  500 Amps
  • Related Accessories Available from Com-Power:
    • FCLCE-1032 Calibration Fixture

CLCE-1032 Impedance Curve Chart details
