20 Amps LISN for CISPR 16 & ANSI C63.4

LI-220C

9 kHz to 30 MHz | CISPR 16-1-2 / ANSI C63.4 | 250 & 50 microhenry | 20 Amps

line impedance stabilization network

20 Amps LISN for CISPR 16 & ANSI C63.4

LI-220C

50 and 250 μH inductor

Used for FCC, CISPR, EN, ANSI

Frequency 9 kHz – 30 MHz

  • The LI-220C Line Impedance Stabilization Network (LISN) provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products.
  • The LI-220C is compliant with both CISPR 16-1-2 and ANSI C63.4.
  • The LISN provides defined stable impedance and isolates the EUT from power source influences, thereby providing accurate and repeatable results.
  • The LI-220C includes one pair of single-conductor networks, housed together, to be installed in series with each current-carrying conductor in a single- phase, dual-phase or DC power system. A second LI-220C pair can be used to accommodate 3-phase power systems (Wye or Delta configurations).
  • This LISN uses air-core inductors to prevent saturation and permeability variation.
  • The mounting plate of the LI-220C is left unpainted in order to facilitate connection to earth ground in its installation, which is essential due to high leakage current.

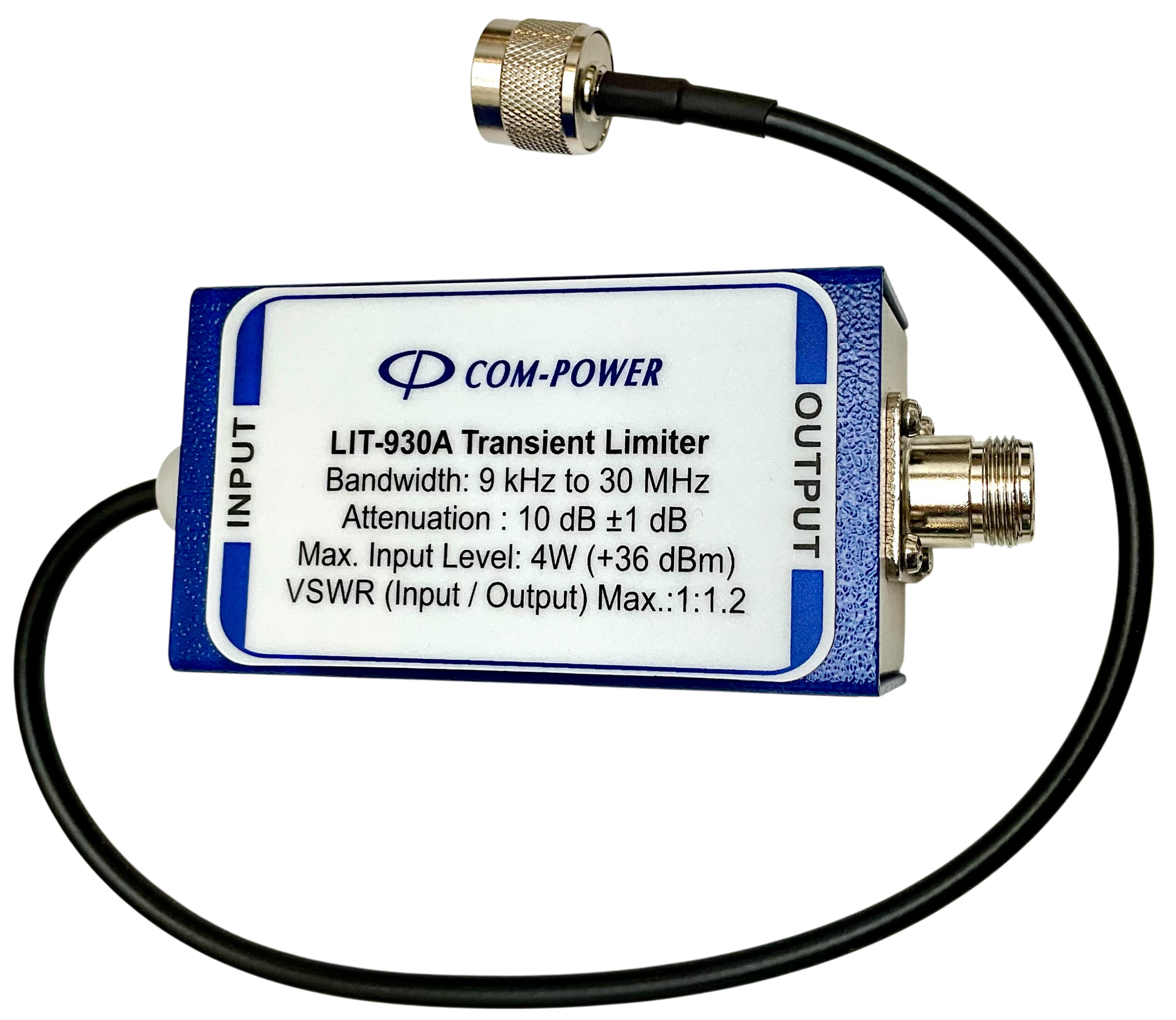

  • Use of a Transient Limiter for impedance matching, reduction of out-of-band emissions and transient protection for your measurement instrument is highly recommended and available from Com- Power.
  • All Com-Power LISNs are individually calibrated in compliance with the relevant requirements of CISPR 16-1-2 and ANSI C63.4. Impedance, Phase, Isolation, and Insertion Loss data is supplied with each unit, along with the calibration certificate.
  • Frequency range of 9 kHz to 30 MHz
  • Fully compliant with CISPR 16-1-2 / ANSI C63.4
  • “Air-core” inductors to prevent saturation
  • Individual Calibration Included
  • Three-Year Warranty
  • Product Name: Line Impedance Stabilization Network (LISN)
  • Specification: CISPR 16-1-2 / ANSI C63.4
  • Application: Power Line conducted emission tests
  • Frequency Range: 9 KHz - 30 MHz
  • RF Connector: 50 Ohms N-type (female)
  • Current Rating: 20 Amperes AC, 14 Amperes DC
  • Voltage Rating: 270 VAC (Line to Ground), 380 VDC
  • Inductors: 250 & 50 microhenry (air-core)
  • Mains & EUT Connections: IEC 60320, C-20 @Mains and Universal multi-configuration @EUT
  • Dimensions (each network): 16.75 x 15.5 x 7.5 inches / 42.5 x 39.3 x 19 cm
  • Weight (each network): 20.5 lbs / 9.3 kg
  • Insertion Loss: 6 dB to 1 dB (9 kHz to 15 kHz), Decreasing linearly with log of frequency
    < 1dB (15 kHz to 30 MHz)
  • Isolation: 20 dB to 40 dB (9kHz to 50 kHz), Increasing linearly with log of frequency
    >50 dB ( 50 kHz to 30 MHz)
