Wide Band Horn Antenna

AH-118

700 MHz to 18 GHz

wide band horn antenna

Wide Band Horn Antenna

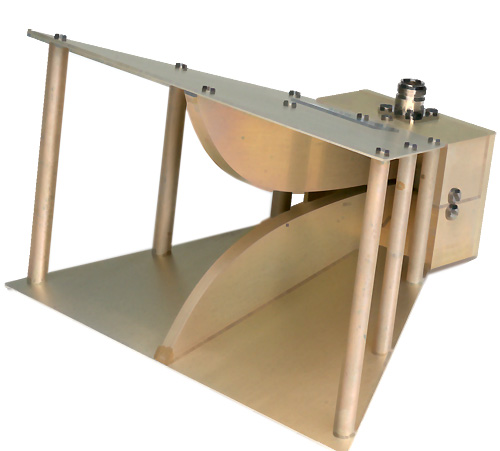

  • The Com-Power AH-118 is a double Ridge Guide broadband horn antenna designed to operate within the frequency range of 700 MHz to 18 GHz.
  • This antenna has exceptional performance characteristics.
  • The majority of electromagnetic interference (EMI) test standards necessitate the utilization of a horn antenna for conducting tests at frequencies over 700 MHz.
  • The Horn antenna is a highly suitable option for conducting both electromagnetic compatibility (EMC) radiated immunity and emissions testing.
Frequently bought together
  • Broadband - For sweep measurements
  • High Gain - Lower Floor Noise for Emissions
  • Three Year Warranty
  • Individual Calibration
  • Frequency Range: 700 MHz - 18 GHz
  • Power: 300 Watts continuous
  • VSWR: 2.0 : 1
  • Polarization: Linear
  • Impedance: 50 Ω
  • Connector type: N type (f)
  • Weight: 4 lb. max.
  • Size: 7.8” X 9.5” X 5.6” / 19.8 x 24.1 x 14.2 cm

Antenna Factors Antenna VSWR AH-118 Typical Field Strength with 300W input power AH-118 -3 db (half-power) Beamwidth AH-118 Return Loss AH-118 typical forward power levels
