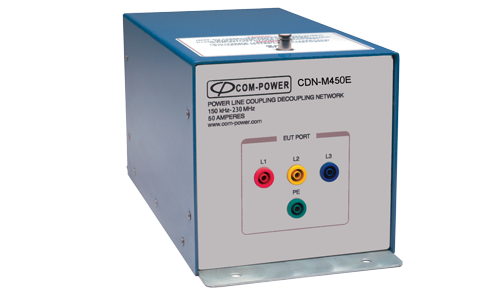

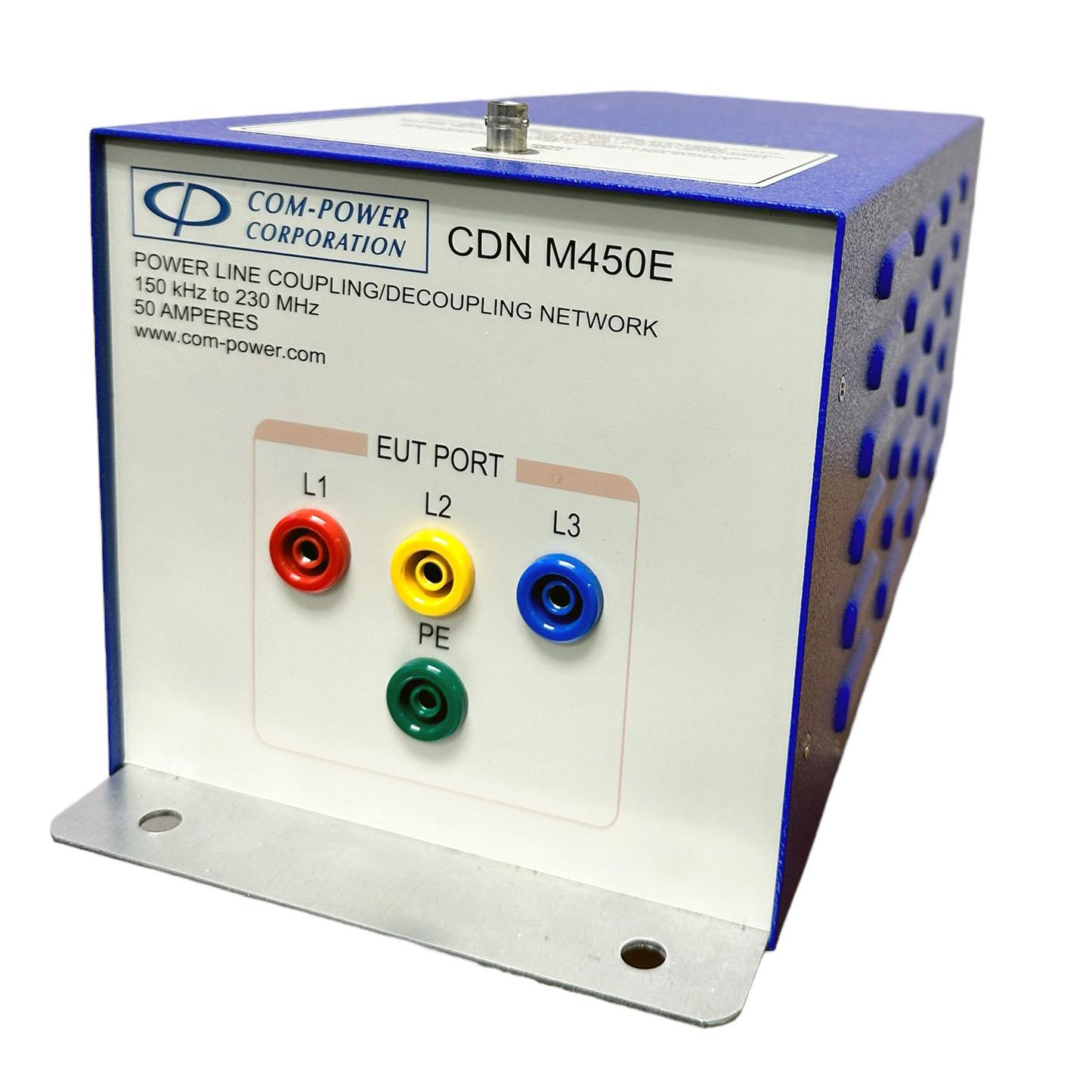

CDN for 4 line Power at 50 Amps
- ▸ Four-line 50 A three-phase power CDN, 150 kHz–230 MHz — IEC 61000-4-6 conducted immunity for high-power three-phase products without separate neutral or with 2L+N+PE configuration.
- ▸ 4 mm shrouded banana sockets, 250 VAC / 350 VDC rating — doubled current capacity over the CDN-M425E for higher-power industrial three-phase loads.
- ▸ 150 Ω common-mode impedance, 9.5 dB VDF, 50 Ω BNC RF port — per-line injection across 4 conductors at up to 50 A per line with full IEC 61000-4-6 compliance.
- ▸ Three-phase EV DC fast-charging stations (input side) — high-power AC mains input on DCFC and supercharger equipment up to 50 A per phase.
- ▸ Three-phase industrial motor drives 15–40 kW — mid-power VFDs, machine-tool spindle drives, and process-pump controllers without neutral conductor.
- ▸ Commercial kitchen and laundry equipment — large commercial ovens, industrial dishwashers, and commercial laundry machines on three-phase service.
- ▸ Three-phase battery energy storage systems (BESS) input side — grid-tied storage inverters and battery cabinet electronics on 3-phase mains input.
- ▸ NIST-traceable individual calibration with three-year warranty — ISO/IEC 17025 accredited calibration optional; ADA-515-X 150 Ω / 50 Ω calibration adapters available separately for IEC 61000-4-6 test-level setting; integrates into Com-Power Conducted Immunity Test Systems.
CDN-M450E Features
- ▸ Power-line CDN for Three-phase power connection (2L + N + PE) at 50 A — 4 lines configuration designed per IEC 61000-4-6 for conducted RF immunity testing of equipment power supplies
- ▸ 50 A per line continuous current rating covering 250 VAC / 350 VDC mains operation; 4 mm shrouded banana sockets for safe, repeatable EUT and AE power connections
- ▸ Frequency range 150 kHz to 230 MHz — covers the entire IEC 61000-4-6 standard band including the optional extended-band test region up to 230 MHz
- ▸ 150 Ω common-mode impedance profile per IEC 61000-4-6 with 9.5 dB voltage division factor (VDF) for accurate, repeatable test-level setting
- ▸ 50 Ω BNC (female) RF injection port — direct connection to immunity-test power amplifier output through standard 50 Ω coaxial cable
- ▸ 40 Vrms maximum RF input — supports test levels of 1, 3, and 10 Vrms per IEC 61000-4-6 with comfortable headroom
- ▸ High decoupling between EUT and AE ports — prevents auxiliary equipment from being stressed and prevents test signals from feeding back into the building mains
- ▸ Sturdy aluminum enclosure with carry handle — benchtop and floor-standing operation; ground stud on rear panel for proper reference-plane bonding
- ▸ NIST-traceable individual calibration with ISO/IEC 17025 accredited calibration available on request; all units shipped with calibration certificate
- ▸ Compatible with ADA-515-X 150 Ω / 50 Ω calibration adapters for test-level setting per IEC 61000-4-6 setup procedure
- ▸ Three-year warranty — covers manufacturing and workmanship defects
CDN-M450E Specifications
| Parameter | Specification |
|---|---|
| Model | CDN-M450E |
| CDN Type / Application | M-Series Power-Line CDN — Three-phase power connection (2L + N + PE) at 50 A |
| Number of Power-Line Conductors | 4 |
| Applicable Standards | IEC / EN 61000-4-6, CISPR 16-1-2 |
| Frequency Range | 150 kHz to 230 MHz |
| Max Continuous Current (per line) | 50 A |
| Max Line Voltage (L – G) | 250 VAC / 350 VDC |
| EUT / AE Power Connectors | 4 mm shrouded banana sockets |
| RF Injection Port | 50 Ω BNC (female) |
| Max RF Input Voltage | 40 Vrms |

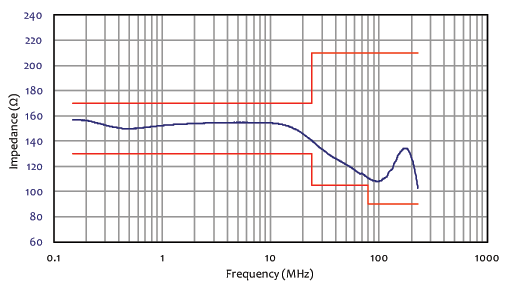

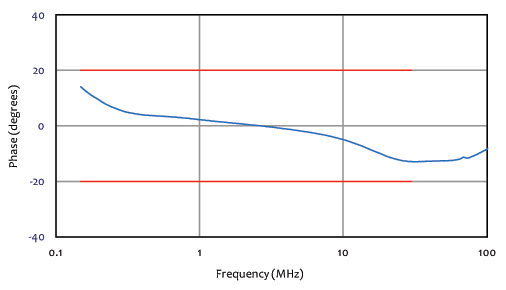

| Common-Mode Impedance | 150 Ω (IEC 61000-4-6 profile) |
| Voltage Division Factor (VDF) | 9.5 dB (typical, with specified tolerance) |
| Decoupling (EUT ↔ AE) | High isolation per IEC 61000-4-6 |
| Calibration | NIST-traceable; ISO/IEC 17025 accredited optional |
| Warranty | 3 years |
Test-level setup: ADA-515-X 150 Ω to 50 Ω calibration adapters (sold separately) are required for setting IEC 61000-4-6 test levels (typically 1, 3, and 10 Vrms) prior to testing the EUT.
