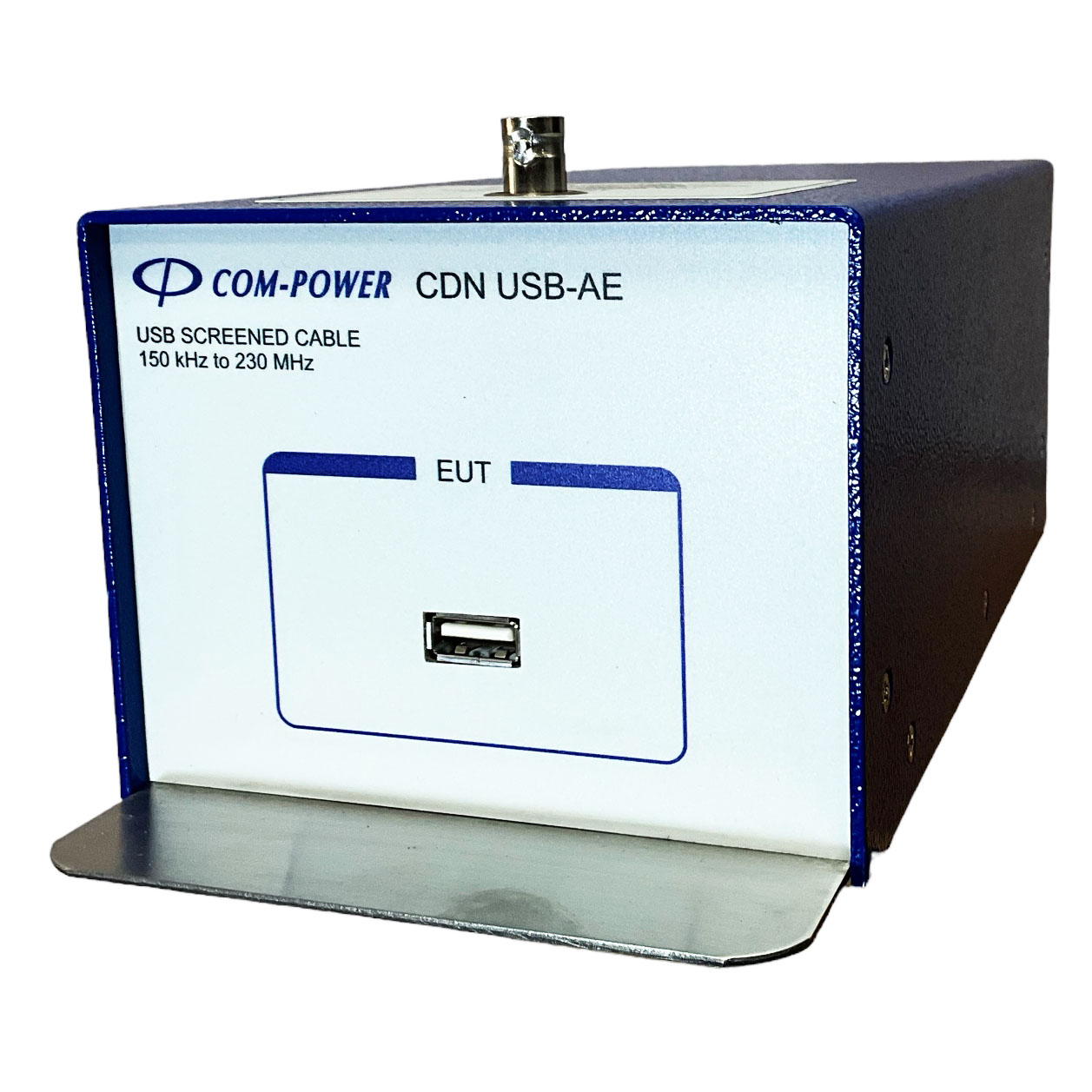

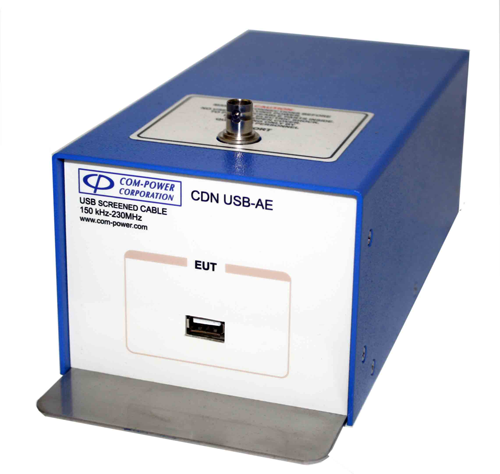

CDN for USB Type A
- ▸ USB Type-A 2.0 CDN, 150 kHz–230 MHz — injects common-mode RF disturbance into USB cables on the host (Type-A) side of the connection per IEC 61000-4-6.
- ▸ USB Type-A EUT-side connector and Type-B AE-side connector — orientation matches the typical EUT-as-host configuration with auxiliary Type-B device on the AE side; cable-through topology preserves USB enumeration.
- ▸ 1 A max current at 30 VAC / 30 VDC, ≥ 50 dB EUT/AE isolation — supports bus-powered USB devices through the test setup; isolation prevents AE-side equipment from being stressed.
- ▸ Computers, laptops, and USB host devices — desktop and notebook computers with USB Type-A ports requiring IEC 61000-4-6 conducted immunity qualification.
- ▸ Industrial PCs and panel computers — HMI panels, industrial computers, and embedded systems with Type-A USB ports for keyboards, scanners, and storage devices.
- ▸ Test instruments and lab equipment with USB host ports — data loggers, source-meters, and benchtop instruments with Type-A connectors for storage and accessory connections.
- ▸ Multimedia and AV equipment — smart TVs, AV receivers, gaming consoles, and media players with Type-A USB host ports requiring IEC 61000-6-1/-3 commercial immunity testing.
- ▸ NIST-traceable individual calibration with three-year warranty — ISO/IEC 17025 accredited calibration optional; ADA-515-X 150 Ω / 50 Ω adapters available separately for IEC 61000-4-6 level setting; pair with CDN-USB-BE when both ends of a USB connection require qualification.
CDN-USB-AE Features
- ▸ Screened-line CDN for USB Type A (USB 2.0) — injects common-mode disturbance into the cable shield per IEC 61000-4-6 for conducted RF immunity testing
- ▸ EUT: USB Type A; AE: USB Type B EUT and AE connections for direct, in-line cable insertion
- ▸ Frequency range 150 kHz to 230 MHz — full IEC 61000-4-6 standard band including the extended-band test region up to 230 MHz
- ▸ 1 A maximum continuous current at 30 VAC / 30 VDC for power-over-data and bus-powered devices
- ▸ Voltage division factor: 9.5 dB +2 / −1 dB — well-defined coupling per IEC 61000-4-6 for accurate test-level setting
- ▸ ≥ 50 dB EUT/AE isolation protects auxiliary equipment from the injected RF disturbance
- ▸ 50 Ω BNC (female) RF injection port — direct mate with immunity-test power amplifier through standard 50 Ω coax
- ▸ 40 Vrms maximum RF input — supports IEC 61000-4-6 test levels of 1, 3, and 10 Vrms with margin
- ▸ Typical use: USB Type-A device-side immunity test setups
- ▸ NIST-traceable individual calibration with ISO/IEC 17025 accredited calibration available on request
- ▸ Compatible with ADA-515-X 150 Ω / 50 Ω calibration adapters for IEC 61000-4-6 test-level setting
- ▸ Three-year warranty — covers manufacturing and workmanship defects
CDN-USB-AE Specifications
| Parameter | Specification |
|---|---|
| Model | CDN-USB-AE |
| CDN Type / Cable Interface | S-Series Screened CDN — USB Type A (USB 2.0) |
| Applicable Standards | IEC / EN 61000-4-6, CISPR 16-1-2 |
| Also Usable as ISN (Emissions) | No |
| Frequency Range (CDN Use) | 150 kHz to 230 MHz |
| EUT / AE Connections | EUT: USB Type A; AE: USB Type B |
| RF Injection Port | 50 Ω BNC (female) |
| Max RF Input Voltage | 40 Vrms |
| Max Continuous Current (EUT/AE) | 1 A |
| Voltage Rating (Line to Ground) | 30 VAC / 30 VDC |
| Voltage Division Factor (VDF) | 9.5 dB +2 / −1 dB |
| Decoupling / Isolation (EUT ↔ AE) | ≥ 50 dB |
| Typical Application | USB Type-A device-side immunity test setups |
| Calibration | NIST-traceable; ISO/IEC 17025 accredited optional |
| Warranty | 3 years |
Test-level setup: ADA-515-X 150 Ω to 50 Ω calibration adapters (sold separately) are required for setting IEC 61000-4-6 test levels (typically 1, 3, and 10 Vrms) prior to testing the EUT.
