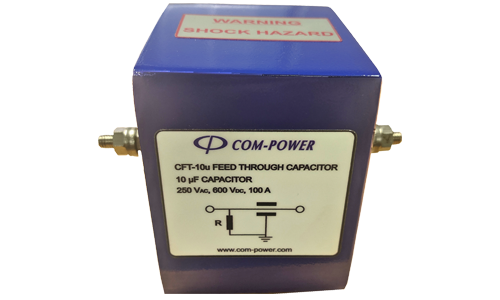

10 microfarad Feed Through Capacitor for MIL-STD and DO-160
- Compliant with MIL-STD-461 and RTCA DO-160 conducted emissions test setups
- Handles 100A continuous current at 40°C with no heating or voltage loss
- Rated for 250 VAC (50–400 Hz) and 600 VDC with 10 µF ±10% capacitance
- Built-in 1.5 MΩ bleeder resistor safely discharges stored energy on power-off
- Provides low RF impedance across power source for accurate current probe measurement

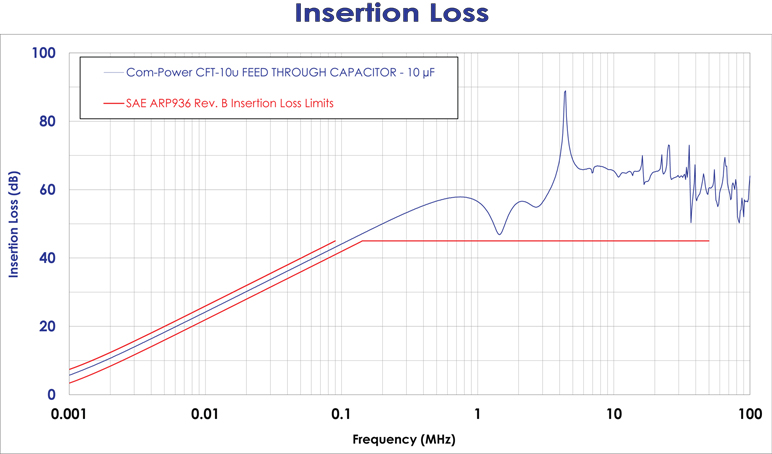

- Meets ARP936 insertion loss requirements per MIL-STD-220 measurement method
- UL94 V-0 rated insulation with CRCA brass/nickel-plated construction
- Mounts on shielded enclosure walls via four M4 threaded holes for easy install
- Built-in discharge resistor for safety
- Excellent stability with long life
- High insulation resistance
- Allows bulkhead or bench mounting
| CFT-10U — 10 µF Feed-Thru Capacitor Specifications | |
|---|---|
| Product | 10 µF Feed-Thru Capacitor |
| Capacitance | 10 µF ±10% |
| Voltage Ratings | 250 VAC (50–400 Hz) / 600 VDC |
| Current Rating | 100 Amperes at 40°C |
| Temperature | -55°C to +70°C @ rated voltage +105°C @ 50% of rated voltage |
| Dissipation Factor | Less than 1% at 25°C (measured at 120 Hz) |
| Dielectric Strength | Twice the rated VDC @ 25°C for two minutes |
| Bleeder Insulation Resistance | 1.5 MΩ ±5% @ 25°C rated voltage |
| Insulation Resistance | 100 MΩ prior to adding bleeder resistance |
| Insulating Material Flammability Rating | UL94 V-0 |
| Construction | CRCA, Brass / Nickel Plated, Painted |
| Dimensions (L x W x H) | 4.82" x 3.52" x 3.43" (122.5 mm x 89.5 mm x 87 mm) |
| Weight | 2.2 lbs (1 kg) |
| Title | Link |
|---|---|
| Datasheet | View PDF |
