line impedance stabilization network

LISN 100 Amps For MIL-STD 461

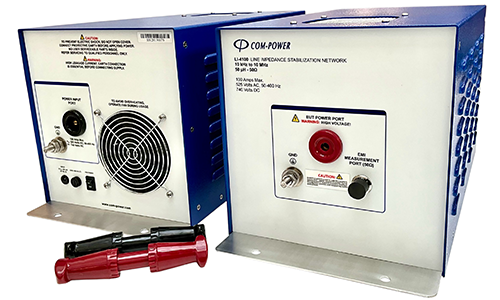

The LI-4100 Line Impedance Stabilization Network can handle upto 100 Amps AC (70Amps DC) current and provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by MIL-STD 461F.

The concept and advantages of the LISN is to:

a) connect in series with, and impose a defined impedance on, the lines under test; thereby providing a distinct advantage over current or voltage probe measurements, where the impedance of the lines is largely uncontrolled;

b) provide a coaxial RF measurement port for connection to the measurement equipment, to which the disturbance voltages present at the EUT port are coupled for measurement; and,

c) isolate the AE (ancilliary equipment) port from the EUT and RF ports, which:

1) minimizes the influence of the AE-connected equipment/cabling on the impedance (and voltage division factor) of the network; and,

2) reduces the amplitude of any ambient signals, as well as spurious disturbance voltages generated by the AE-connected equipment, thereby minimizing their potential impact on the measurement results.

Two pairs of LI-4100 can be used to accommodate 3-phase power systems (Wye or Delta configurations).

Frequently bought together
  • Frequency range of 10 kHz to 10 MHz
  • Fully compliant with MIL-STD 461
  • 100 Amp(AC) (forced air cooling)
  • “Air-core” inductors to prevent saturation
  • Individual Calibration Included
  • Three-Year Warranty
  • Product Name: Line Impedance Stabilization Network (LISN)
  • Specification: MIL-STD 461
  • Application: Power Line conducted emission tests
  • Frequency Range: 10 kHz to 10 MHz
  • RF Connector: 50 Ohms N-type (female)
  • Current Rating: 100 Ampere AC, 70 Ampere DC
  • Voltage Rating: 525 VAC (Line to Ground), 740 VDC
  • Inductors: 50 microhenry (air-core)
  • Mains & EUT Connections: Superior Electric SUPERCON Shrouded sockets
  • Dimensions (each network): 10 x 10 x 21 inches /25.4 x 25.4 x 53.3 cm
  • Weight (each network): 17 lbs. / 7.7 kg
