4 Feet Manually Operated Turntables

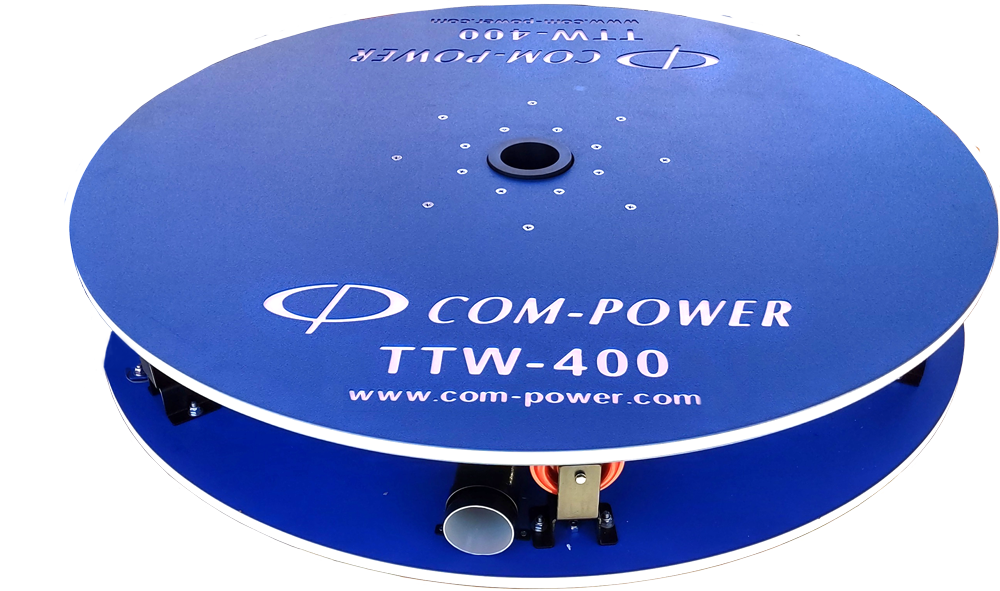

- ▸ TTW-400 manually operated EMC turntable, 4-foot diameter — a low-profile, above-ground motorized rotation platform for spinning the equipment under test (EUT) during commercial EMC radiated emissions testing.
- ▸ Finds the worst-case emissions angle — rotating the EUT through a full 360° lets the operator identify the position at which the equipment radiates maximum electromagnetic interference, as required for radiated emissions compliance.
- ▸ Bidirectional rotation from a handheld remote switch — a reversing-drum remote turns the turntable clockwise or counterclockwise from outside the measurement area, on a 9.8 ft (3 m) extension cable.
- ▸ Manual toggle-switch control on the motor box — the TTW-400 also supports direct manual operation via a toggle switch mounted on the table's motor box.
- ▸ Motor and gear-reduction rotation drive — the drive pairs an electric motor with a gear-reduction unit for smooth, controlled 2.1 RPM rotation under load.
- ▸ Supports desktop or floor-standing equipment up to 1000 lbs — the 4 ft (1.2 m) platform holds and rotates EUTs weighing up to 1000 lbs (455 kg) at just 9 in (23 cm) table height.
- ▸ Non-conductive, weatherproof construction — built from non-conductive weatherproof materials so it adds no reflections to the measurement and is equally suited to indoor and outdoor test sites.
- ▸ Optional loading ramp available — any optional ramp can be ordered with the turntable to roll heavy equipment onto the low-profile platform.
TTW-400 Features
- ▸ Manually operated motorized EMC turntable — for radiated emissions testing
- ▸ 4-foot (1.2 m) table diameter
- ▸ Rotates the EUT to find the maximum-emission angle
- ▸ Reversing-drum remote switch — clockwise/counterclockwise control
- ▸ Manual toggle-switch control on the motor box
- ▸ Motor and gear-reduction rotation drive — 2.1 RPM
- ▸ 1000 lb (455 kg) load rating
- ▸ Low 9-inch profile — above-ground platform
- ▸ Non-conductive, weatherproof construction — indoor/outdoor use
- ▸ Optional loading ramp available
TTW-400 Specifications
| Parameter | Specification |
|---|---|
| Model | TTW-400 |
| Type | Manually operated motorized EMC turntable |
| Table Diameter | 4 feet (1.2 m) |
| Table Height | 9 inches (23 cm) |
| Load Rating | 1000 lbs (455 kg) |
| Turntable RPM | 2.1 |
| Power | 115 VAC, 60 Hz |
| Remote Switch | Reversing drum |
| Manual Control | Toggle switch on motor box |
| Rotation Drive | Motor and gear-reduction drive |
| Extension Cable | 9.8 feet (3 m) |
| Construction | Non-conductive, weatherproof material |
| Table Weight | 149 lbs (68 kg) |
| Optional | Loading ramp |
Construction: Non-conductive, weatherproof materials make the turntable suitable for both indoor and outdoor EMC test sites. An optional loading ramp is available for heavy EUTs.
