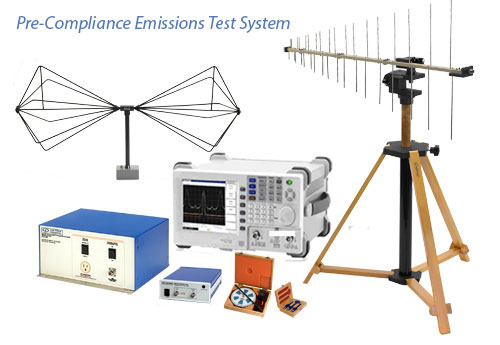

Precompliance Test System With 3.2 GHz Spectrum Analyzer
- ▸ PC-114H EMC pre-compliance emissions test system, 9 kHz–1 GHz — a complete radiated and conducted EMI pre-compliance test system for in-house EMC screening, supplied with a 3.2 GHz spectrum analyzer.
- ▸ Higher 3.2 GHz spectrum analyzer (SPA-932TG) — the PC-114H ships with the SPA-932TG spectrum analyzer (9 kHz–3.2 GHz) with tracking generator and EMI options, extending coverage beyond the PC-114's 2.1 GHz analyzer.
- ▸ Radiated and conducted EMI emissions testing in one system — the PC-114H bundles the essential equipment for both radiated and conducted emissions measurements at your own facility.
- ▸ Complete antenna and probe set for emissions screening — bundles an AB-900A biconical antenna, an ALP-100 power log periodic antenna, and a PS-400 near field probe set for radiated emissions and source location.
- ▸ Conducted emissions measurement equipment included — a LIN-120C LISN (150 kHz–30 MHz, 20 A) and a PAM-103 preamplifier (32 dB, 1 MHz–1 GHz) cover conducted emissions and low-level signal measurement.
- ▸ Comb generator for site verification — a CGO-501 or CGO-505 comb generator provides reference signals to verify test site performance and measurement setup.
- ▸ Ideal for FCC Part 15, EN 55022 / EN 55011 pre-compliance — well suited to pre-compliance testing for FCC Part 15, EN 55022, and EN 55011 (CISPR 22 / CISPR 11), helping confirm how close a product is to compliance before formal testing.
- ▸ Portable, battery-operated, with a non-conductive tripod and three-year warranty — the system is portable and battery-operable, includes an AT-812 non-conductive antenna tripod, and is backed by a three-year warranty.
PC-114H Features
- ▸ EMC pre-compliance emissions test system — radiated & conducted EMI
- ▸ Frequency coverage 9 kHz to 1 GHz (radiated & conducted emissions)
- ▸ Includes a 3.2 GHz spectrum analyzer — SPA-932TG with tracking generator & EMI option
- ▸ Reference signals for site verification — comb generator included
- ▸ Radiated & conducted emissions in one system
- ▸ Complete antenna, probe, LISN, and preamplifier set
- ▸ Non-conductive antenna tripod included — AT-812
- ▸ Portable
- ▸ Battery operated
- ▸ Three-year warranty
PC-114H Specifications
| Included Equipment | Description |
|---|---|
| SPA-932TG | Spectrum analyzer, 9 kHz to 3.2 GHz, with tracking generator & EMI option |
| AB-900A | Biconical antenna, 25 MHz – 300 MHz |
| ALP-100 | Power log periodic antenna, 300 MHz to 1 GHz |
| PS-400 | Near field probe set — 2 E-field probes and 1 H-field probe |
| CGO-501 or CGO-505 | Comb generator for site verification |
| PAM-103 | Preamplifier, 32 dB gain, 1 MHz to 1 GHz |
| LIN-120C | Line Impedance Stabilization Network, 150 kHz to 30 MHz, 20 A |
| AT-812 | Antenna tripod, 0.8 m to 1.2 m adjustable height |
Vs. PC-114: The PC-114H is a bundled system; the table above lists the included equipment, each linking to its own product page. The PC-114H ships with the higher-frequency 3.2 GHz SPA-932TG analyzer, while the PC-114 includes the 2.1 GHz SPA-921TG.
