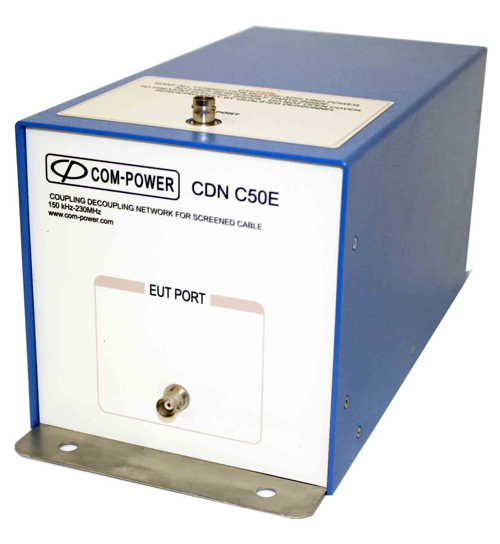

ISN / CDN for 50 ohm Coax Cable

ISN / CDN-C50E

150 MHz to 230 MHz

impedance stabilization network

ISN / CDN for 50 ohm Coax Cable

  • CDN-C50E can be used as an ISN for measuring emissions on 50 Ohms coax cables per EN 55022/32.
  • Designed for testing products for conducted immunity per IEC/EN 61000-4-6 and CISPR 16-1-2 that uses 50 Ohm coaxial cables for data communication.
  • CDN-C50E is one of the series of Coupling/Decoupling Networks. It has 50 Ohm BNC connectors for both EUT and AE power connections.
  • The CDN-C50E can handle up to 1 Amp of current. The RF disturbance signal coupling port is female BNC. It can handle up to 40V of RF Input Voltage.
  • The bottom surface of the CDN is not painted for easy and effective grounding.
  • Com-Power CDNs are individually calibrated. All Com-Power CDNs can be purchased separately or as part of the CIS series conducted immunity test system.
  • Frequency Range 150 MHz to 230 MHz
  • Designed for IEC / EN 61000-4-6
  • 50 Ohm Coaxial Cables
  • Individual calibration included
  • Three Year Warranty
  • Product Name: Coupling Decoupling Network (CDN)
  • Compliant Test Standards: IEC / EN 61000-4-6
  • Application: 50 Ohm Coaxial Cables
  • Frequency Range: 150 kHz to 230 MHz
  • RF Input Voltage: 40 V (Max)
  • RF Input Connector: 50 Ω BNC (Female)
  • Voltage Rating: 310 V AC / 440 V DC (Line to Ground)
  • Current Rating: 1 Amp (Max)
  • AE and EUT Connections: 50 Ohm Female BNC
  • Common Mode Impedance:
  • 150 kHz - 26 MHz: 150Ω ± 20Ω
  • 26 MHz - 80 MHz: 150Ω + 60Ω / – 45Ω
  • 80 MHz - 230 MHz: 150Ω + 60Ω / – 60Ω
  • Voltage Division Factor: 9.5 dB +3 / -1
  • Decoupling of Common Mode Disturbance: ≥ 40dB (EUT/AE)
  • Dimensions: 6 x 6 x 13 inches or 15.2 x 15.2 x 33 cm
  • Weight: 5 lbs. or 2.3 kg
  • Accessories Available from Com-Power for setting test levels and running the test:
  • ADA-C50/C75 shorting adapters
  • ADA-515-2 150 Ω to 50 Ω adapters
  • TEP-050 50 Ω Terminator
  • ATTN-6-100W Power Attenuator
  • DCU-300-100W Directional Coupler
  • ASC series Power Amplifiers
