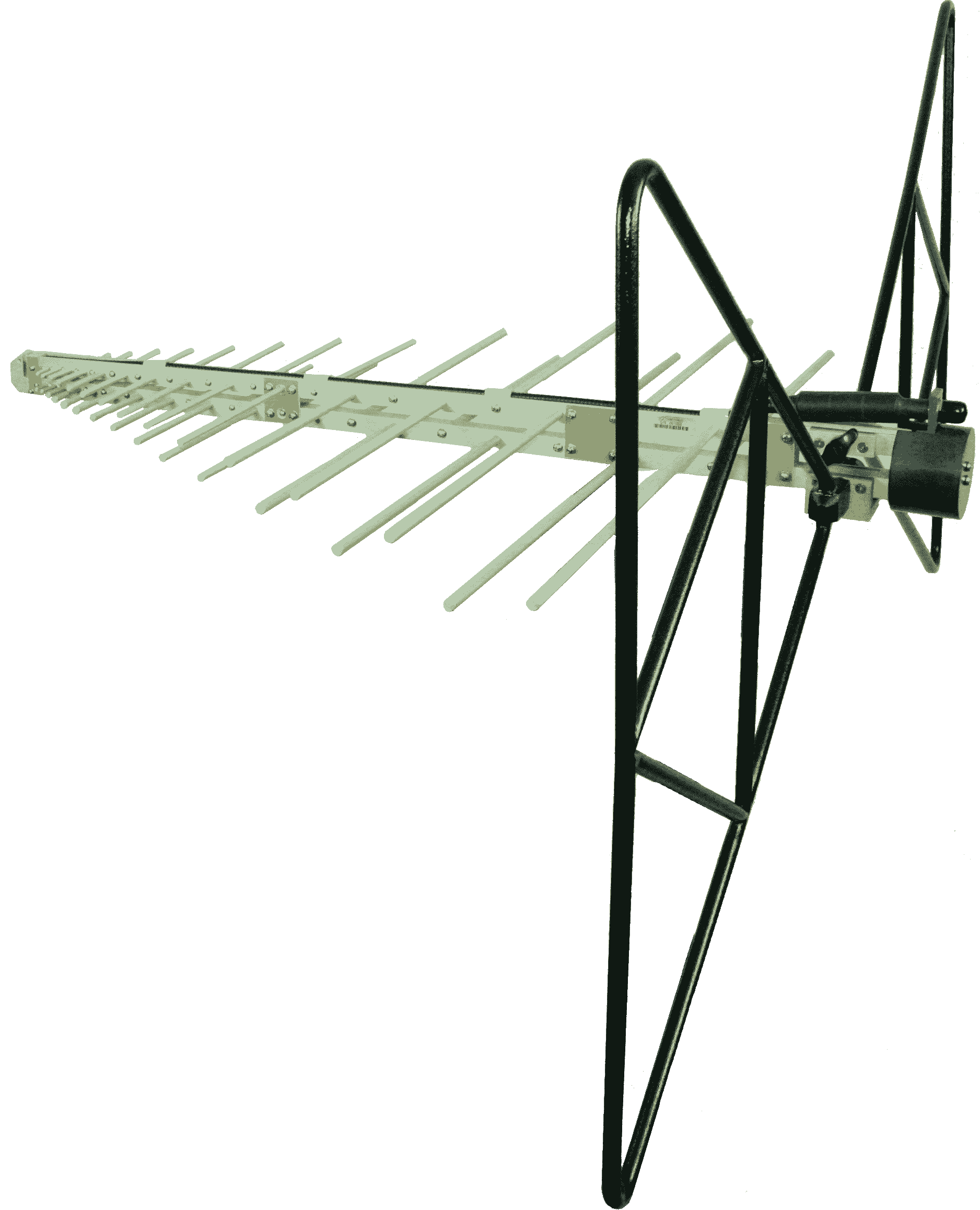

Hybrid Combilog Antenna
- The AC-220 Hybrid Combilog antenna is for EMC emission and immunity up to 2 GHz.
- It combines the electrical properties of two antenna (biconical and Log ).
- It reduces overall testing time by 20 - 30% due to antenna switching.
- It is Optimized for emission measurements, but can handle up to 500 Watt CW, making it suitable for most immunity measurements .
- Each antenna is individually calibrated at 10 meters and the data included the purchase price.
- Wide Frequency Range : 20 MHz to 2 GHz (emissions) 80 MHz to 2 GHz (immunity)
- Complies with ±1 dB Antenna Symmetry/Balance Requirements of ANSI C63.5 and CISPR 16-1-4
- Good Cross-Polarization Performance
- Transmit & Receive Capabilities
- Individual Calibration Included
- Three-year Standard Warranty
- Product Name: CombiLog Antenna
- Frequency Range: 20 MHz to 2 GHz (as receive antenna - emissions) / 80 MHz to 2 GHz (as transmit antenna - immunity)
- Polarization: Linear
- Nominal Impedance: 50 Ω
- Power Handling: (CW) 500 Watts (continuous)
- Connector: N-type (female)
- Antenna Factor: 6.2 to 27.7 (average: 16.9) [dB(m-1)]
- Isotropic Gain: -18.5 to 9.2 (average: 3.0) dBi
- VSWR: 1.06 to 3.93 (average: 1.78) :1
- Return Loss: 4.5 to 29.8 (average: 12.5) dB
- Specifications: FCC, CISPR, EN, ETSI, etc.
- Dimensions: (H x W x D) 50
