Model	# Lines	# Frequency	Application

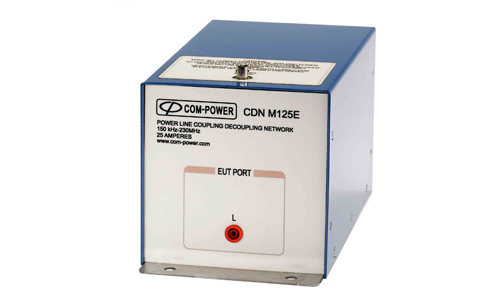

CDN-M125E	1	150 kHz - 230 MHz	Single line

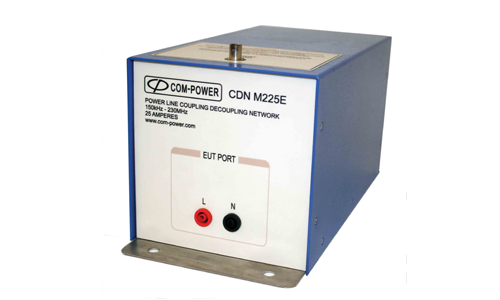

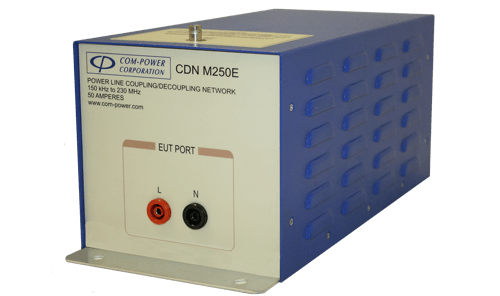

CDN-M225E	2	150 kHz - 230 MHz	Single phase + neutral

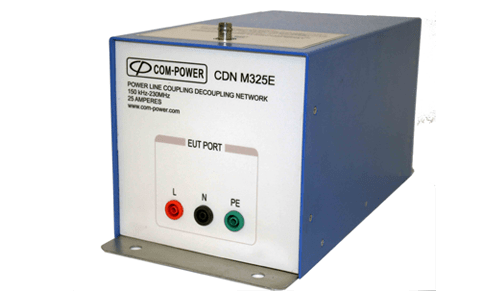

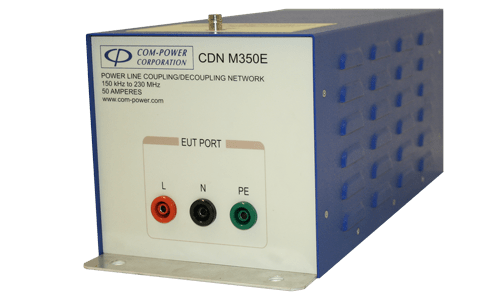

CDN-M325E	3	150 kHz - 230 MHz	Single phase + neautral + earth

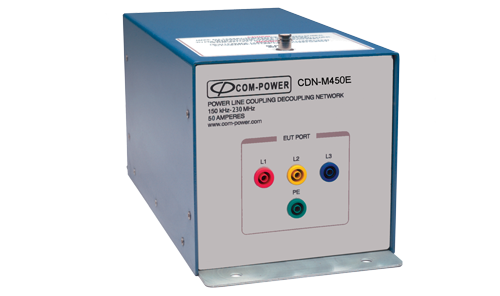

CDN-M425	4	150 kHz - 80 MHz	Three phase + earth

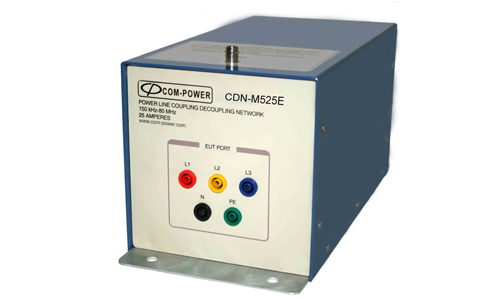

CDN-M525	5	150 kHz - 80 MHz	Three phase + neutral + earth

I/O rating for EUT/AE ports: 480 V AC, 600 V DC

• Current rating: 25 Amperes
• Common mode impedance: 150 kHz - 26 MHz: 150 Ohms ± 20 Ohms
• 26 MHz - 80 MHz: 150 Ohms + 60 Ohms and - 45.5 Ohms
• 80 MHz - 230 MHz: 150 Ohms + 60 Ohms and - 60 Ohms
• Maximum RF voltage input: 40 V max
• Voltage attenuation (RF/EUT): 9 dB to 12 dB
• Insertion loss EUT/AE: 30 dB min from 150 kHz to 2 MHz
• 50 dB min from 2 MHz to 80 MHz
• Coupling factor: 0.3 dB max up to 3 kHz
• Decoupling attenuation (RF/AE): 50 dB min, 150 kHz - 80 MHz
