Antenna Kit for DO-160 and MIL-STD
- Radiated Emission for FCC, CISPR, DO-160, MIL STD-461 Com-Power ANK-910M antenna kit also known as the E-Field Emissions Antenna Test Kit suitable for offsite EMC testing from 9 kHz to 1 GHz.

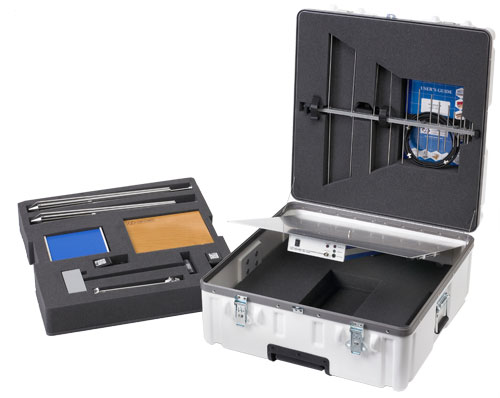

- The antenna kit includes a carrying case with a specific storage compartment for each antenna.
- Antenna tripod model AT-120 with a separate carrying case (ATC-120) is available as an option.
- Items included:
- 1. AM-741R Active Monopole Antenna
- 2. ABF-900 Collapsible Biconical Antenna 25 MHz-300 MHz
- 3. ALC-100 Compact Log Periodic Antenna 300 MHz-1 GHz
- 4. PAM-103 33 dB Gain Preamplifier 1 MHz-1 GHz
- 5. CGO-501 or CGO-505 Comb Generator 1 or 5 MHz Step
- 6. PS-500 Near Field Probes 400 Hz-5 GHz
- 7. Cables N and BNC type
- Broadband Antennas
- High Gain Preamplifier
- Near Field Probe Kit
- Comb Generator
- Carrying Case
- 3-year Warranty
Frequency Range: 9 kHz to 1 GHz
Items Included:
AM-741R Active Monopole Antenna
ABF-900 Collapsible Biconical Antenna 25 MHz-300 MHz
ALC-100 Compact Log Periodic Antenna 300 MHz-1 GHz
PAM-103 33 dB Gain Preamplifier 1 MHz-1 GHz
CGO-501 or CGO-505 Comb Generator 1 or 5 MHz Step
PS-500 Near Field Probes 400 Hz-5 GHz
AMC-910 Cable Kit
Calibration Data
Weight: 38 lbs / 17.2 Kg
Dimensions: 24x19x12 Inches / 60.9x48.2x30.5 cm
| Title | Link |
|---|---|
| Datasheet | View PDF |
Quote Request
