Antenna Kit with Active Loop Antenna

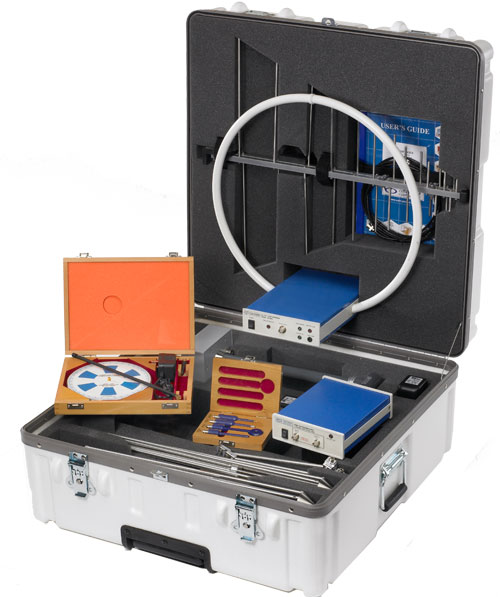

- EMC Test Kit with Active Loop Com-Power ANK-910L antenna kit, also know as Magnetic Antenna kit, is suitable for offsite EMC testing from 9 kHz to 1 GHz.
- The antenna kit is supplied with a carrying case with a specific storage compartment for each antenna.
- Antenna tripod model AT-120 with a separate carrying case (ATC-120) is available as an option.
- Items included:
- AL-130R Active Loop Antenna
- ABF-900 Collapsible Biconical Antenna 25 MHz-300 MHz
- ALC-100 Compact Log Periodic Antenna 300 MHz-1 GHz
- PAM-103 33 dB Gain Preamplifier 1 MHz-1 GHz
- CGO-501 or CGO-505 Comb Generator 1 or 5 MHz Step
- PS-500 Near Field Probes 400 Hz-5 GHz
- ACK-910L Cable kit
- Broadband Antennas
- High Gain Preamplifier
- Near Field Probe Kit
- Comb Generator
- Carrying Case
- 3-year Warranty
Frequency Range: 9 kHz to 1 GHz
Items Included:
AL-130R Active Loop Antenna
ABF-900 Collapsible Biconical Antenna 25 MHz-300 MHz
ALC-100 Compact Log Periodic Antenna 300 MHz-1 GHz
PAM-103 33 dB Gain Preamplifier 1 MHz-1 GHz
CGO-501 or CGO-505 Comb Generator 1 or 5 MHz Step
PS-500 Near Field Probes 400 Hz-5 GHz
AMC-910 Cable Kit
Calibration Data
Weight: 70 lbs / 31.8 Kg
Dimensions: 27 x 27 x 12 Inches / 68.5 x 68.5 x 30.5 cm
